• Qlight QT70 Series LED Steady/Flashing Module Ø70
1 1

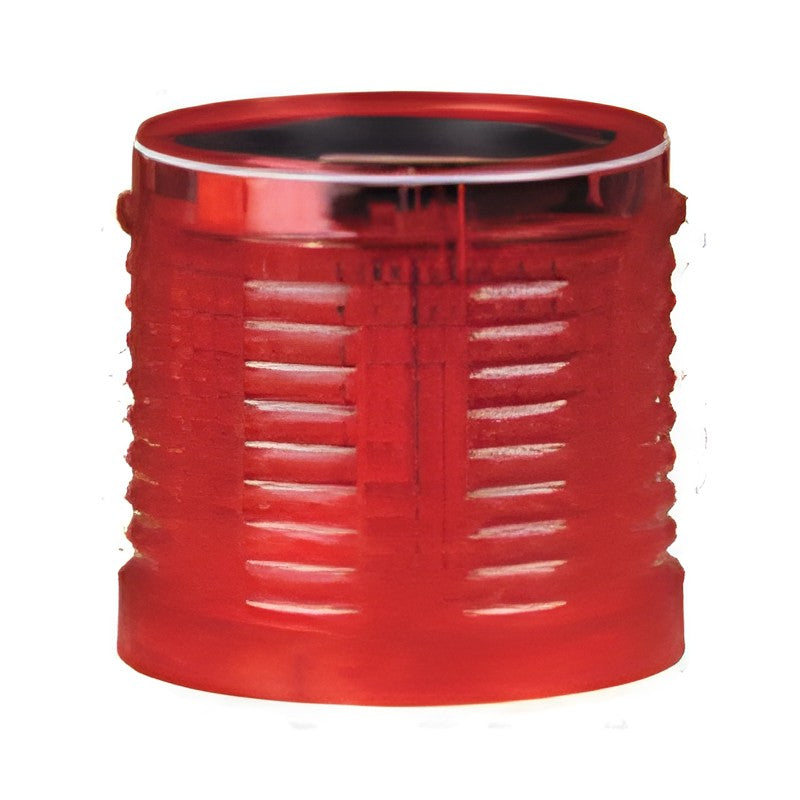

Qlight QT70 Series LED Steady/Flashing Module Ø70

Qlight QT70 Series LED Steady/Flashing Module Ø70

LED Steady/Flashing Module light layer for the QT70 modular multi-functional LED tower lights.

Key features

  • Steady or flashing selectable by switch on top of the module
  • High brightness LED
  • Five colors: red, amber, green, blue, white
  • Snap-on connector assembly without tools
  • IP65 when assembled

Specifications

Material PC
Protection rating IP65 (assembled)
Size Ø70 x 65 mm
Q70L-FR-12 Color: Red | Voltage: DC12V | Current: 120mA
Q70L-FR-24 Color: Red | Voltage: DC24V | Current: 55mA
Q70L-FR-110 Color: Red | Voltage: AC110V | Current: 25mA
Q70L-FR-220 Color: Red | Voltage: AC220V | Current: 25mA
Q70L-FA-12 Color: Amber | Voltage: DC12V | Current: 120mA
Q70L-FA-24 Color: Amber | Voltage: DC24V | Current: 55mA
Q70L-FA-110 Color: Amber | Voltage: AC110V | Current: 25mA
Q70L-FA-220 Color: Amber | Voltage: AC220V | Current: 25mA
Q70L-FG-12 Color: Green | Voltage: DC12V | Current: 120mA
Q70L-FG-24 Color: Green | Voltage: DC24V | Current: 55mA
Q70L-FG-110 Color: Green | Voltage: AC110V | Current: 25mA
Q70L-FG-220 Color: Green | Voltage: AC220V | Current: 25mA
Q70L-FB-12 Color: Blue | Voltage: DC12V | Current: 120mA
Q70L-FB-24 Color: Blue | Voltage: DC24V | Current: 55mA
Q70L-FB-110 Color: Blue | Voltage: AC110V | Current: 25mA
Q70L-FB-220 Color: Blue | Voltage: AC220V | Current: 25mA
Q70L-FC-12 Color: White | Voltage: DC12V | Current: 120mA
Q70L-FC-24 Color: White | Voltage: DC24V | Current: 55mA
Q70L-FC-110 Color: White | Voltage: AC110V | Current: 25mA
Q70L-FC-220 Color: White | Voltage: AC220V | Current: 25mA
Signal Light AccessoriesQlight
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QT70 Series LED Steady/Flashing Module Ø70

Brand Qlight·Signal Light Accessories

Available part numbers (20)

Q70L-FR-12, Q70L-FR-24, Q70L-FR-110, Q70L-FR-220, Q70L-FA-12, Q70L-FA-24, Q70L-FA-110, Q70L-FA-220, Q70L-FG-12, Q70L-FG-24 + 10 more — see full table ↓

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Q70L-FR-12Color: Red | Voltage: DC12V | Current: 120mA
Q70L-FR-24Color: Red | Voltage: DC24V | Current: 55mA
Q70L-FR-110Color: Red | Voltage: AC110V | Current: 25mA
Q70L-FR-220Color: Red | Voltage: AC220V | Current: 25mA
Q70L-FA-12Color: Amber | Voltage: DC12V | Current: 120mA
Q70L-FA-24Color: Amber | Voltage: DC24V | Current: 55mA
Q70L-FA-110Color: Amber | Voltage: AC110V | Current: 25mA
Q70L-FA-220Color: Amber | Voltage: AC220V | Current: 25mA
Q70L-FG-12Color: Green | Voltage: DC12V | Current: 120mA
Q70L-FG-24Color: Green | Voltage: DC24V | Current: 55mA
Q70L-FG-110Color: Green | Voltage: AC110V | Current: 25mA
Q70L-FG-220Color: Green | Voltage: AC220V | Current: 25mA
Q70L-FB-12Color: Blue | Voltage: DC12V | Current: 120mA
Q70L-FB-24Color: Blue | Voltage: DC24V | Current: 55mA
Q70L-FB-110Color: Blue | Voltage: AC110V | Current: 25mA
Q70L-FB-220Color: Blue | Voltage: AC220V | Current: 25mA
Q70L-FC-12Color: White | Voltage: DC12V | Current: 120mA
Q70L-FC-24Color: White | Voltage: DC24V | Current: 55mA
Q70L-FC-110Color: White | Voltage: AC110V | Current: 25mA
Q70L-FC-220Color: White | Voltage: AC220V | Current: 25mA
