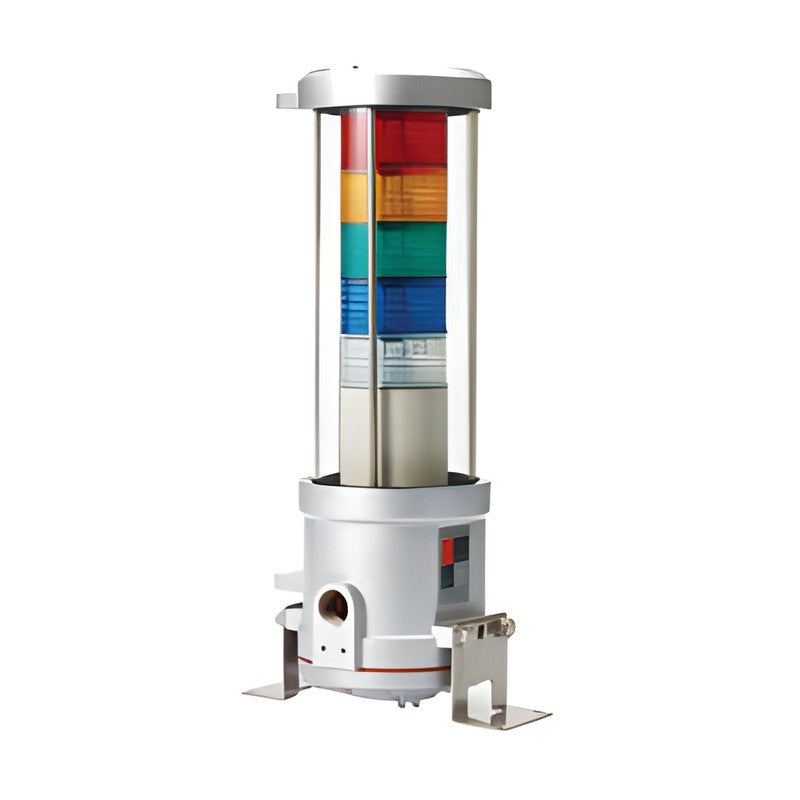

Qlight QTEXB Explosion Proof LED Tower Light with Siren Buzzer and Flame Proof Housing
Qlight QTEXB Explosion Proof LED Tower Light with Siren Buzzer and Flame Proof Housing
Explosion proof LED tower light with built-in siren buzzer and flame arrester in an aluminium flame proof housing.
Key features
- Built-in siren buzzer up to 90 dB at 1 m with flame arrester
- Ex d IIC rated flame proof aluminium housing
- Steady/flashing LED tower light, 1 to 5 layers
- Self (direct) mount and wall mount types
- Wiring by external contact or PNP transistor
Specifications
| Protection rating | IP66 |
|---|---|
| Ambient temperature | -40 to +60 °C |
| Material | Tempered glass lens, AS filter lens, aluminium housing |
| Explosion protection | IECEx/ATEX Ex db IIC T6 Gb, Ex tb IIIC T85°C Db; KCs Ex d IIC T6 |
| Cable entry | 3/4" NPT 2-way |
| Light source current (1 layer) | 80mA (DC12V), 60mA (DC24V), Max.55mA (AC95V-230V) |
| Certificates | IECEx, ATEX, KCs, TIIS |
| Sound level | Max.90dB at 1m |
| Buzzer current | 60mA (DC12V), 120mA (DC24V), Max.80mA (AC95V-230V) |
| QTEXB | Function: Steady/Flashing + siren buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC95V-230V | Colors: R, A, G, B, W | Weight: 4.11-4.72kg | Certificates: IECEx, ATEX, KCs, TIIS |
Explosion-Proof Signal LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight QTEXB Explosion Proof LED Tower Light with Siren Buzzer and Flame Proof Housing
Available part numbers (1)
QTEXB
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Explosion-Proof Signal Lights
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| QTEXB | Function: Steady/Flashing + siren buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC95V-230V | Colors: R, A, G, B, W | Weight: 4.11-4.72kg | Certificates: IECEx, ATEX, KCs, TIIS |
Need a different model, or a part not listed here? Send us your parts list →
