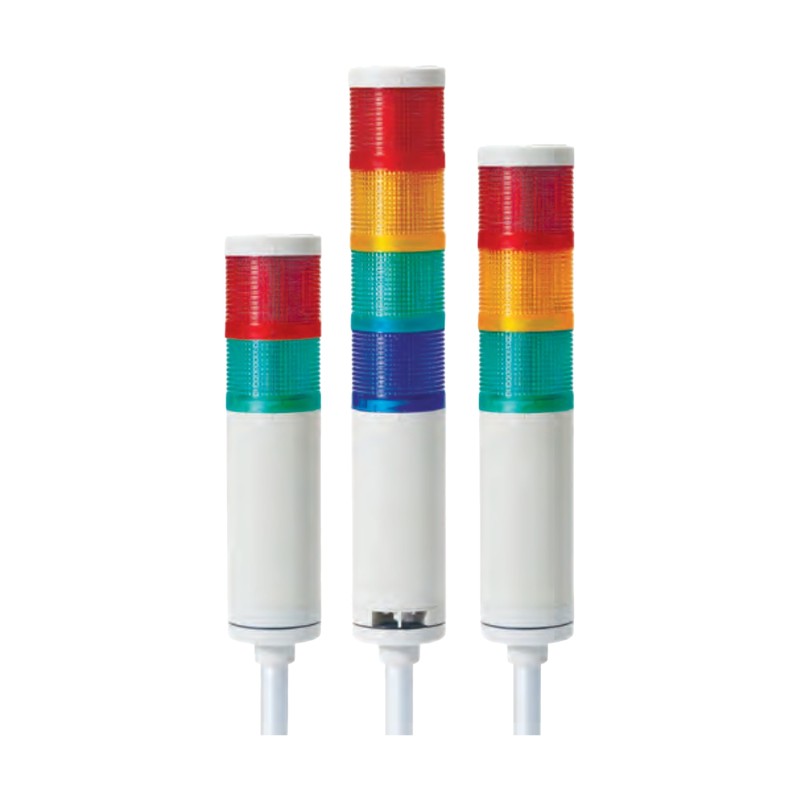

Qlight QTG60L-WIZ Ø60 Wireless LED Steady/Flashing Tower Light, Pole Mount

Qlight QTG60L-WIZ Ø60 Wireless LED Steady/Flashing Tower Light, Pole Mount

Ø60 mm pole mount LED tower light with Zigbee wireless network for remote monitoring and control.

Key features

  • Remote monitoring and control of tower light status from a PC or smartphone
  • Zigbee (IEEE 802.15.4) 2.4 GHz mesh network with multi-hop routing, up to 100 m between devices
  • No extra cabling needed when production line layouts change
  • Steady, steady/flashing and built-in buzzer versions; integrated lens/cover A type available
  • Can also be wired by external contact or NPN transistor
  • AC type free-voltage 100V-240V

Specifications

Protection rating IP65 (standard), IP54 (buzzer type)
Ambient temperature -30 to +50 °C
Diameter Ø60
Material Lens PC, housing ABS
Sound level Max.85dB at 1m
Light source current (1 layer) 130mA (DC12V), 85mA (DC24V), Max.65mA (AC)
Buzzer current 35mA (DC12V), 30mA (DC24V), Max.40mA (AC)
Weight 0.50-0.73kg
Height 435-625 mm
Certificates KC (DC24V), CE RED, FCC (DC24V, AC110V-220V)
Wireless Zigbee IEEE 802.15.4, 2.4 GHz
Qlight QTG60L-WIZ Ø60 Wireless LED Steady/Flashing Tower Light, Pole Mount - reference 2
QTG60L-WIZ Function: Steady | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60L-WIZ-BZ Function: Steady with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60LF-WIZ Function: Steady/Flashing | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60LF-WIZ-BZ Function: Steady/Flashing with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60L-WIZ Function: Steady | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60L-WIZ-BZ Function: Steady with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60LF-WIZ Function: Steady/Flashing | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60LF-WIZ-BZ Function: Steady/Flashing with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
Wireless Signal TowersQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QTG60L-WIZ Ø60 Wireless LED Steady/Flashing Tower Light, Pole Mount

Brand Qlight·Wireless Signal Towers

Available part numbers (8)

QTG60L-WIZ, QTG60L-WIZ-BZ, QTG60LF-WIZ, QTG60LF-WIZ-BZ, QTGA60L-WIZ, QTGA60L-WIZ-BZ, QTGA60LF-WIZ, QTGA60LF-WIZ-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QTG60L-WIZ Ø60 Wireless LED Steady/Flashing Tower Light, Pole Mount - reference 2
0 selected
RFQ List (0)
Product codeSpec
QTG60L-WIZFunction: Steady | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60L-WIZ-BZFunction: Steady with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60LF-WIZFunction: Steady/Flashing | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTG60LF-WIZ-BZFunction: Steady/Flashing with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60L-WIZFunction: Steady | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60L-WIZ-BZFunction: Steady with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60LF-WIZFunction: Steady/Flashing | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTGA60LF-WIZ-BZFunction: Steady/Flashing with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
