• Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount
1 1

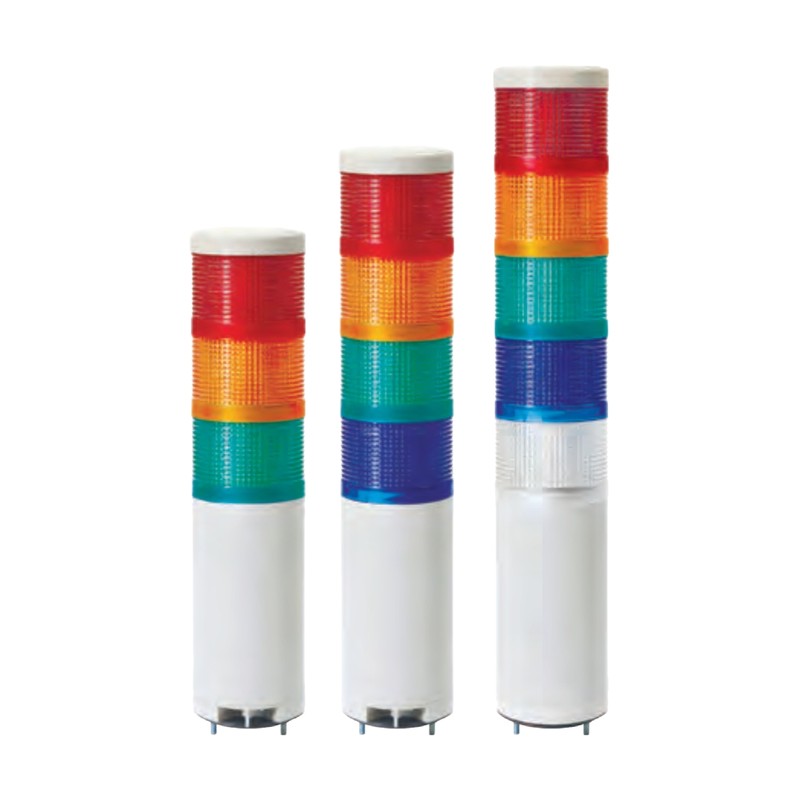

Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount

Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount

Ø70 mm direct mount LED tower light with Zigbee wireless network for remote monitoring and control.

Key features

  • Remote monitoring and control of tower light status from a PC or smartphone
  • Zigbee (IEEE 802.15.4) 2.4 GHz mesh network with multi-hop routing, up to 100 m between devices
  • No extra cabling needed when production line layouts change
  • Steady, steady/flashing and built-in buzzer versions; integrated lens/cover A type available
  • Can also be wired by external contact or NPN transistor
  • AC type free-voltage 100V-240V

Specifications

Protection rating IP65 (standard), IP54 (buzzer type)
Ambient temperature -30 to +50 °C
Diameter Ø70
Material Lens PC, housing ABS
Sound level Max.85dB at 1m
Light source current (1 layer) 130mA (DC12V), 85mA (DC24V), Max.65mA (AC)
Buzzer current 35mA (DC12V), 30mA (DC24V), Max.40mA (AC)
Weight 0.38-0.65kg
Height 199-399 mm
Certificates KC (DC24V), CE RED, FCC (DC24V, AC110V-220V)
Wireless Zigbee IEEE 802.15.4, 2.4 GHz
Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount - reference 2
QTG70ML-WIZ Function: Steady | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70ML-WIZ-BZ Function: Steady with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70MLF-WIZ Function: Steady/Flashing | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70MLF-WIZ-BZ Function: Steady/Flashing with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70ML-WIZ Function: Steady | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70ML-WIZ-BZ Function: Steady with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70MLF-WIZ Function: Steady/Flashing | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70MLF-WIZ-BZ Function: Steady/Flashing with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
Wireless Signal TowersQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount

Brand Qlight·Wireless Signal Towers

Available part numbers (8)

QTG70ML-WIZ, QTG70ML-WIZ-BZ, QTG70MLF-WIZ, QTG70MLF-WIZ-BZ, QTGA70ML-WIZ, QTGA70ML-WIZ-BZ, QTGA70MLF-WIZ, QTGA70MLF-WIZ-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QTG70ML-WIZ Ø70 Wireless LED Steady/Flashing Tower Light, Direct Mount - reference 2
0 selected
RFQ List (0)
Product codeSpec
QTG70ML-WIZFunction: Steady | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70ML-WIZ-BZFunction: Steady with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70MLF-WIZFunction: Steady/Flashing | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTG70MLF-WIZ-BZFunction: Steady/Flashing with built-in buzzer | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70ML-WIZFunction: Steady | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70ML-WIZ-BZFunction: Steady with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70MLF-WIZFunction: Steady/Flashing | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTGA70MLF-WIZ-BZFunction: Steady/Flashing with built-in buzzer | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
