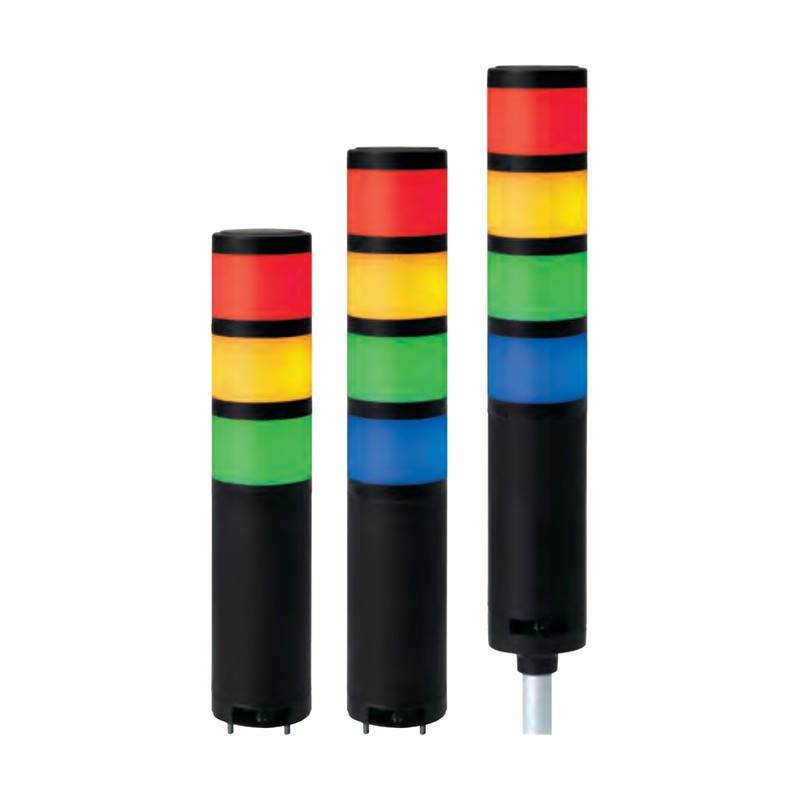

Qlight QTR60(M)L-ETN Ø60 Ethernet LED Tower Light with Buzzer

Qlight QTR60(M)L-ETN Ø60 Ethernet LED Tower Light with Buzzer

Ø60 mm modular LED tower light with built-in buzzer, remotely monitored and controlled over Ethernet / LAN.

Key features

  • Remote monitoring and control over LAN via web browser (HTTP) or TCP/IP application
  • Built-in buzzer with 5 tones, volume control lever
  • Runtime libraries (VC++, VB, Delphi, C#) and sample program; Windows XP / 7 / 10
  • Communication speed 10M, half duplex
  • Integrated lens-and-cover A type available
  • Standard operation: 2 layers lit at the same time

Specifications

Protection rating IP54
Ambient temperature -30 to +50 °C
Diameter Ø60
Material Lens PC, housing ABS
Sound level Max.85dB at 1m
Light source current (1 layer) 285mA (DC12V), 300mA (DC24V), Max.75mA (AC)
Buzzer current 215mA (DC12V), 245mA (DC24V), Max.55mA (AC)
Height 199-399 mm (direct), 435-635 mm (pole)
Communication Ethernet 10M half duplex
Usage Indoor
QTR60L-ETN-BZ Mount: Pole | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTR60ML-ETN-BZ Mount: Direct | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTRA60L-ETN-BZ Mount: Pole | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTRA60ML-ETN-BZ Mount: Direct | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
Network Signal TowersQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QTR60(M)L-ETN Ø60 Ethernet LED Tower Light with Buzzer

Brand Qlight·Network Signal Towers

Available part numbers (4)

QTR60L-ETN-BZ, QTR60ML-ETN-BZ, QTRA60L-ETN-BZ, QTRA60ML-ETN-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QTR60L-ETN-BZMount: Pole | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTR60ML-ETN-BZMount: Direct | Top: Standard cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
QTRA60L-ETN-BZMount: Pole | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB18, LW18, QZ18, SZ18, QL18, SL18
QTRA60ML-ETN-BZMount: Direct | Top: Integrated lens/cover | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
