• Qlight QTR60L-IOL Ø60mm IO-Link Programmable LED Tower Light with Translucent Lens
1 1

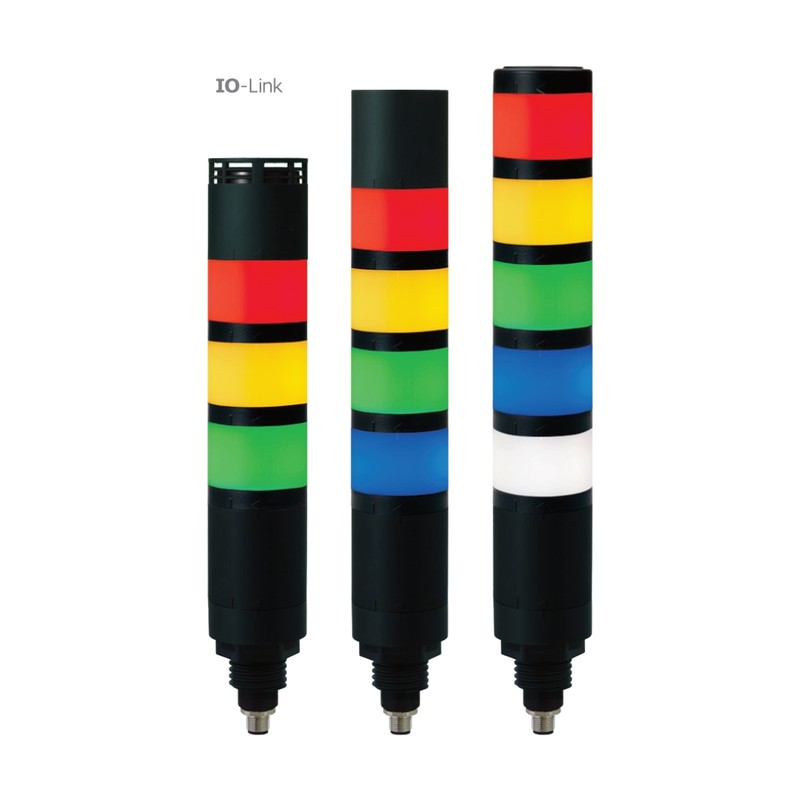

Qlight QTR60L-IOL Ø60mm IO-Link Programmable LED Tower Light with Translucent Lens

Qlight QTR60L-IOL Ø60mm IO-Link Programmable LED Tower Light with Translucent Lens

Ø60 mm modular LED steady/flashing signal tower light with IO-Link communication and optional top-mounted buzzer.

Key features

  • Modular LED steady/flashing signal tower light with IO-Link technology
  • Translucent lens emits soft, comfortable light
  • Tool-free lock-type structure for adding modules and changing color arrangement
  • Optional top-mounted 100 dB high-volume buzzer (360°) or IP65 85 dB waterproof buzzer
  • IO-Link V1.1, 38,400 bps (COM2), M12 5-pin male Class A connector
  • IO-Link mode only (trigger mode not supported)

Specifications

Voltage DC24V
Diameter Ø60 mm
Material Housing-ABS, Lens-PC
Ambient temperature -30 to +50 °C
Light source current (1 layer) 70mA
Buzzer current 90mA
Weight by layers 1L 0.25kg, 2L 0.33kg, 3L 0.41kg, 4L 0.49kg, 5L 0.57kg
Connector M12 5-pin male Class A, M30 mount
Certificates IO-Link, CE, UL
Mounting Wall mount (bracket LB32)
QTR60L-IOL Function: Steady/Flashing | Layers: 1-5 | Voltage: DC24V | Colors: R, A, G, B, W | Protection: IP65
QTR60L-IOL-HBZ Function: Steady/Flashing with built-in high-volume buzzer, Max. 100dB at 1m | Layers: 1-4 | Voltage: DC24V | Colors: R, A, G, B | Protection: non-waterproof
QTR60L-IOL-WBZ Function: Steady/Flashing with built-in waterproof buzzer, Max. 85dB at 1m | Layers: 1-4 | Voltage: DC24V | Colors: R, A, G, B | Protection: IP65
IO-Link Signal TowersQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QTR60L-IOL Ø60mm IO-Link Programmable LED Tower Light with Translucent Lens

Brand Qlight·IO-Link Signal Towers

Available part numbers (3)

QTR60L-IOL, QTR60L-IOL-HBZ, QTR60L-IOL-WBZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QTR60L-IOLFunction: Steady/Flashing | Layers: 1-5 | Voltage: DC24V | Colors: R, A, G, B, W | Protection: IP65
QTR60L-IOL-HBZFunction: Steady/Flashing with built-in high-volume buzzer, Max. 100dB at 1m | Layers: 1-4 | Voltage: DC24V | Colors: R, A, G, B | Protection: non-waterproof
QTR60L-IOL-WBZFunction: Steady/Flashing with built-in waterproof buzzer, Max. 85dB at 1m | Layers: 1-4 | Voltage: DC24V | Colors: R, A, G, B | Protection: IP65
