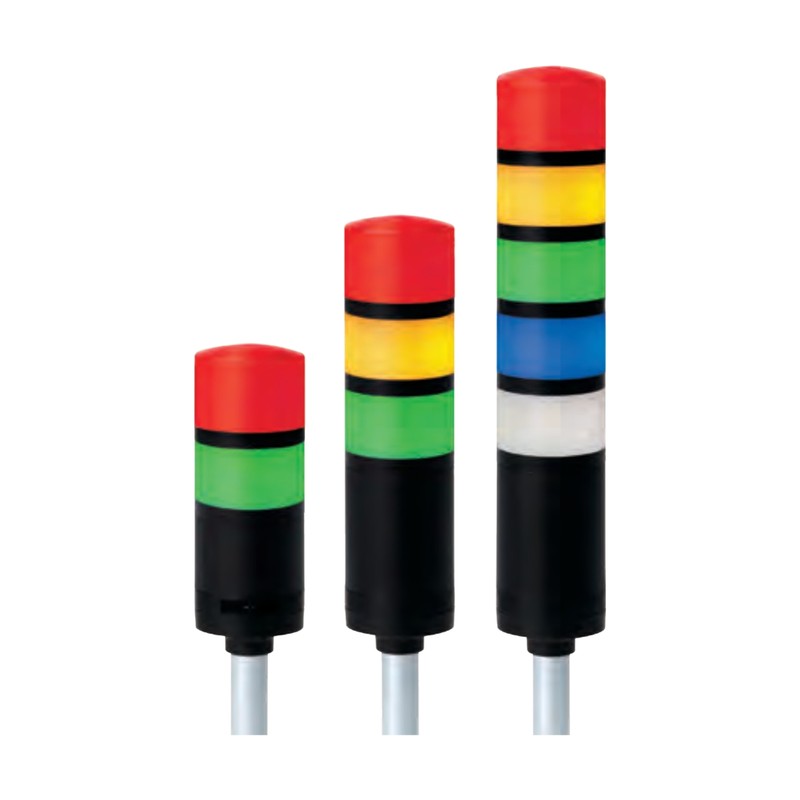

Qlight QTR70L / QTRA70L Ø70mm Modular LED Steady/Flashing Tower Light, Pole mount

Qlight QTR70L / QTRA70L Ø70mm Modular LED Steady/Flashing Tower Light, Pole mount

Ø70mm pole mount modular LED steady/flashing tower light (QTR series), standard or integrated cover-lens type.

Key features

  • Modular LED steady/flashing tower light with 1 to 5 layers
  • Uses a translucent lens for a soft, comfortable signal light
  • Lens modules lock together by rotation; colors can be added or changed without tools
  • QTRA models have an integrated cover and lens in one piece
  • Standard and built-in buzzer models; buzzer volume adjustable by lever; 100dB high-volume top buzzer module available
  • Transistor connection for direct PLC operation; M12 connector type available

Specifications

Lens diameter Ø70mm
Mount Pole mount
Materials Lens PC, housing ABS, pole Al
Ambient temperature -30 to +50 °C
Protection rating IP65 standard, IP54 buzzer type
Sound volume Max. 85dB at 1m
Flashing rate 60-80/min
Light source current DC12V 105mA, DC24V 70mA, AC110V-220V max. 60mA
Certifications UL (DC24V)
RoHS Compliant
QTR70L Type: Standard | Function: Steady | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTR70L-BZ Type: Standard | Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTR70LF Type: Standard | Function: Steady/Flashing | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTR70LF-BZ Type: Standard | Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTRA70L Type: Integrated cover and lens | Function: Steady | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTRA70L-BZ Type: Integrated cover and lens | Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTRA70LF Type: Integrated cover and lens | Function: Steady/Flashing | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
QTRA70LF-BZ Type: Integrated cover and lens | Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
Signal Tower LightsQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QTR70L / QTRA70L Ø70mm Modular LED Steady/Flashing Tower Light, Pole mount

Brand Qlight·Signal Tower Lights

Available part numbers (8)

QTR70L, QTR70L-BZ, QTR70LF, QTR70LF-BZ, QTRA70L, QTRA70L-BZ, QTRA70LF, QTRA70LF-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
