Qlight QWCD35/QWCD50 LED Strobe Beacon and Electronic Sounder Combination

Qlight QWCD35/QWCD50 LED Strobe Beacon and Electronic Sounder Combination

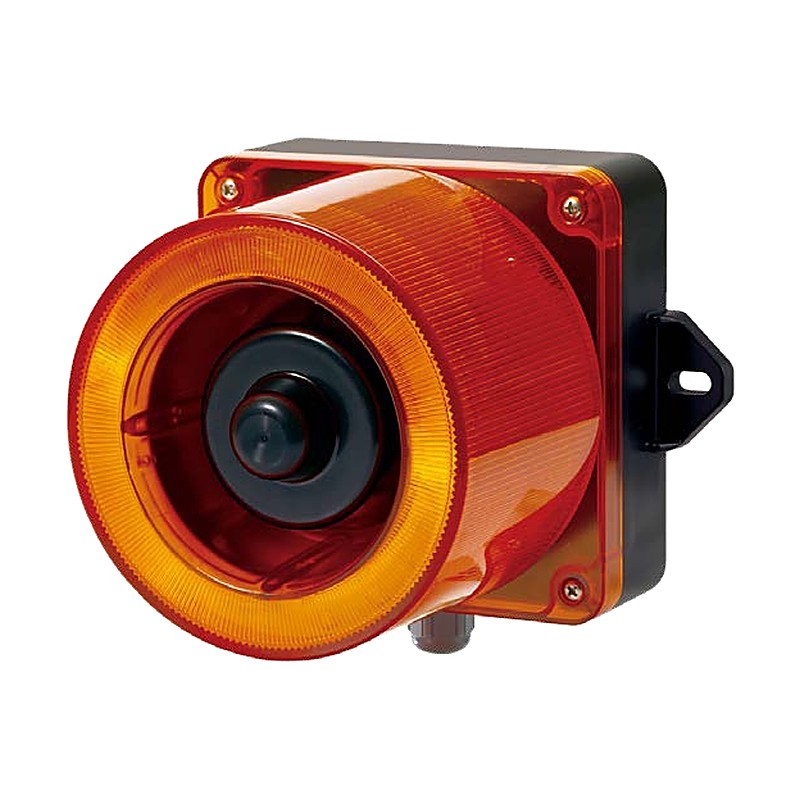

Wall-mounted IP66 electronic sounder whose horn cover doubles as an LED strobe light globe, with 31 built-in tones and optional SD card MP3 playback.

Key features

  • Horn cover acts as the light globe, reducing product size
  • 31 pre-recorded tones selectable by binary input; SD versions play user MP3 files
  • Volume adjustment and sound selection switches built in
  • IP66 sealing for heavy-duty, marine and outdoor use
  • PC horn cover for durability and weather resistance

Specifications

Protection rating IP66
Ambient temperature -30 to +50 °C (SD card type -20 to +50 °C; low-temperature DC type -50 to +50 °C)
Materials Horn PC, housing PC+ABS
Flashing rate 60-80 flashes/min
Colors R-Red, A-Amber, G-Green, B-Blue
Cable entry M20 cable gland
Certification UL listed DC12V-24V
Compliance RoHS
Qlight QWCD35/QWCD50 LED Strobe Beacon and Electronic Sounder Combination - reference 2
QWCD35 Voltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: 31 built-in, max. 115dB | Weight: 1.10kg
QWCD35SD Voltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Weight: 1.15kg
QWCD50 Voltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: 31 built-in, max. 123dB | Weight: 2.70kg
QWCD50SD Voltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Weight: 3.00kg
Sounder BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWCD35/QWCD50 LED Strobe Beacon and Electronic Sounder Combination

Brand Qlight·Sounder Beacons

Available part numbers (4)

QWCD35, QWCD35SD, QWCD50, QWCD50SD

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QWCD35/QWCD50 LED Strobe Beacon and Electronic Sounder Combination - reference 2
0 selected
RFQ List (0)
Product codeSpec
QWCD35Voltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: 31 built-in, max. 115dB | Weight: 1.10kg
QWCD35SDVoltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Weight: 1.15kg
QWCD50Voltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: 31 built-in, max. 123dB | Weight: 2.70kg
QWCD50SDVoltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Weight: 3.00kg
