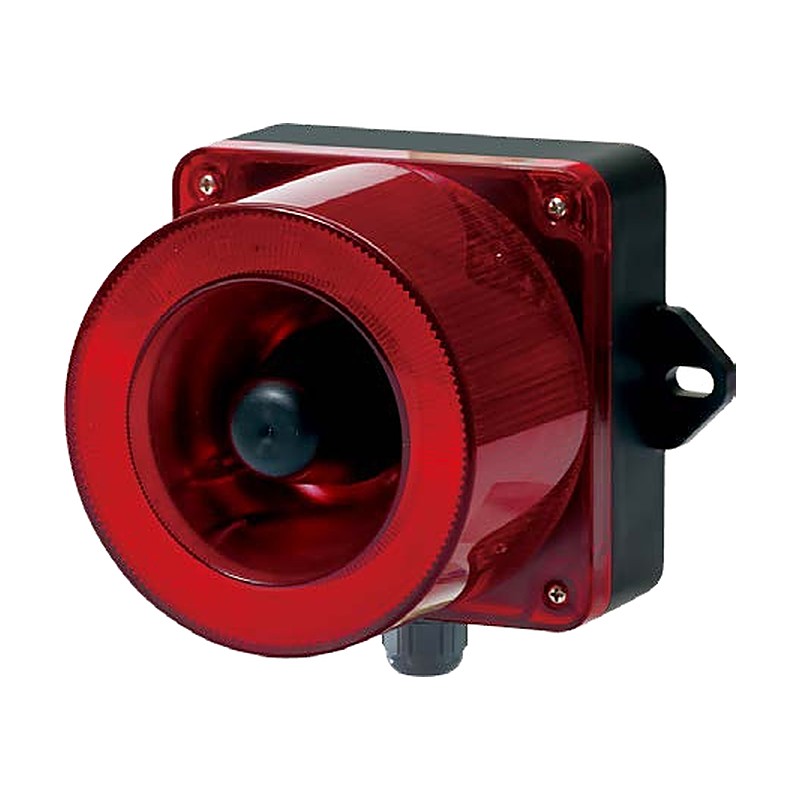

Qlight QWCD35B LED Strobe Beacon with Built-in High Volume Buzzer

Qlight QWCD35B LED Strobe Beacon with Built-in High Volume Buzzer

IP66 LED strobe signal beacon with a built-in high-volume buzzer of up to 115 dB, available with or without terminal box.

Key features

  • High-volume buzzer output up to 115 dB at 1 m
  • Horn cover acts as the LED strobe light globe
  • QWCD35BT version with terminal box and cable glands
  • IP66 sealing for outdoor and heavy-duty use

Specifications

Protection rating IP66
Ambient temperature -30 to +50 °C
Buzzer volume Max. 115 dB at 1 m
Voltage DC12V (800mA), DC24V (500mA), AC110V-220V (max. 250mA)
Colors R-Red, A-Amber, G-Green, B-Blue
Cable entry M20 cable gland
Certification UL listed DC12V, DC24V
Compliance RoHS
Qlight QWCD35B LED Strobe Beacon with Built-in High Volume Buzzer - reference 2
QWCD35B Housing: standard | Weight: 0.78kg DC, 0.89kg AC
QWCD35BT Housing: with terminal box | Weight: 0.86kg DC, 0.97kg AC
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWCD35B LED Strobe Beacon with Built-in High Volume Buzzer

Brand Qlight·Sounder Beacons

Available part numbers (2)

QWCD35B, QWCD35BT

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QWCD35B LED Strobe Beacon with Built-in High Volume Buzzer - reference 2
0 selected
RFQ List (0)
Product codeSpec
QWCD35BHousing: standard | Weight: 0.78kg DC, 0.89kg AC
QWCD35BTHousing: with terminal box | Weight: 0.86kg DC, 0.97kg AC
