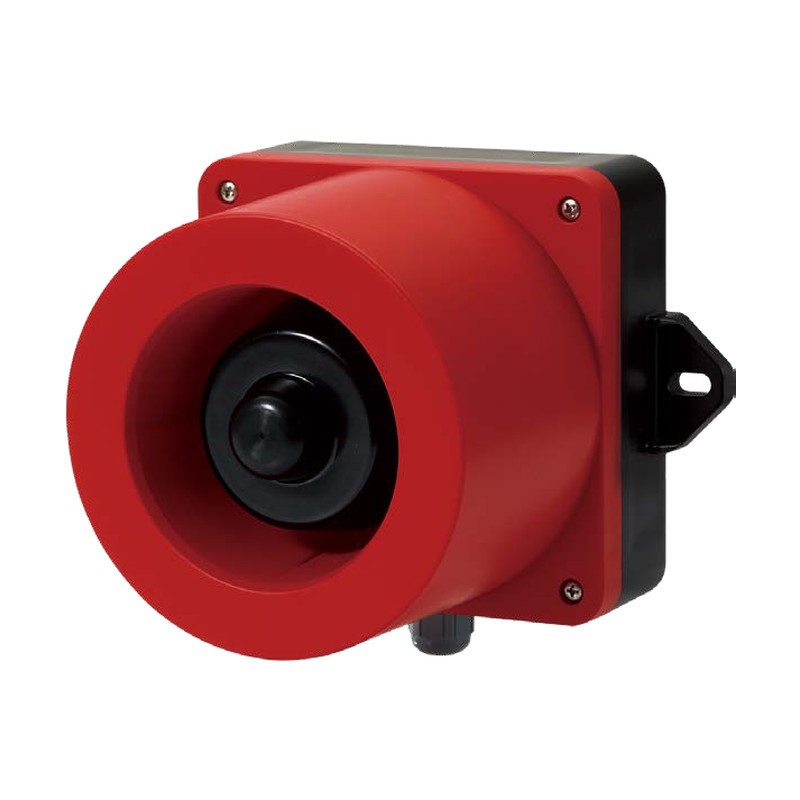

Qlight QWH35/QWH50 Wall Mount Electronic Sounder with 31 Pre-Recorded Sounds

Qlight QWH35/QWH50 Wall Mount Electronic Sounder with 31 Pre-Recorded Sounds

IP66 wall-mounted electronic sounder with 31 pre-recorded special warning sounds; SD versions also play user MP3 messages.

Key features

  • 31 pre-recorded warning sounds selected by binary input
  • SD card (MP3) versions for custom voice messages
  • Volume and sound selection switches inside the unit
  • IP66 sealing for outdoor installation
  • QWH50 high-volume output up to 123 dB

Specifications

Protection rating IP66
Ambient temperature -30 to +50 °C (SD card type -20 to +50 °C; low-temperature DC type -50 to +50 °C)
Materials Horn PC+ABS, housing PC+ABS
Cable entry M20
Voltage DC12V-24V (free voltage 10-30V), AC110V-220V (free voltage 100-240V)
Certification UL listed DC12V-24V
Compliance RoHS
Qlight QWH35/QWH50 Wall Mount Electronic Sounder with 31 Pre-Recorded Sounds - reference 2
QWH35 Sound: 31 built-in, max. 115dB | Current: DC max. 1.15A, AC max. 300mA | Weight: 0.90kg
QWH35SD Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.00kg
QWH50 Sound: 31 built-in, max. 123dB | Current: DC max. 3.6A, AC max. 730mA | Weight: 2.70kg
QWH50SD Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Current: DC max. 3.6A, AC max. 730mA | Weight: 2.80kg
Signal HornsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWH35/QWH50 Wall Mount Electronic Sounder with 31 Pre-Recorded Sounds

Brand Qlight·Signal Horns

Available part numbers (4)

QWH35, QWH35SD, QWH50, QWH50SD

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QWH35/QWH50 Wall Mount Electronic Sounder with 31 Pre-Recorded Sounds - reference 2
0 selected
RFQ List (0)
Product codeSpec
QWH35Sound: 31 built-in, max. 115dB | Current: DC max. 1.15A, AC max. 300mA | Weight: 0.90kg
QWH35SDSound: built-in max. 115dB, MP3 max. 112dB (SD card) | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.00kg
QWH50Sound: 31 built-in, max. 123dB | Current: DC max. 3.6A, AC max. 730mA | Weight: 2.70kg
QWH50SDSound: built-in max. 123dB, MP3 max. 115dB (SD card) | Current: DC max. 3.6A, AC max. 730mA | Weight: 2.80kg
