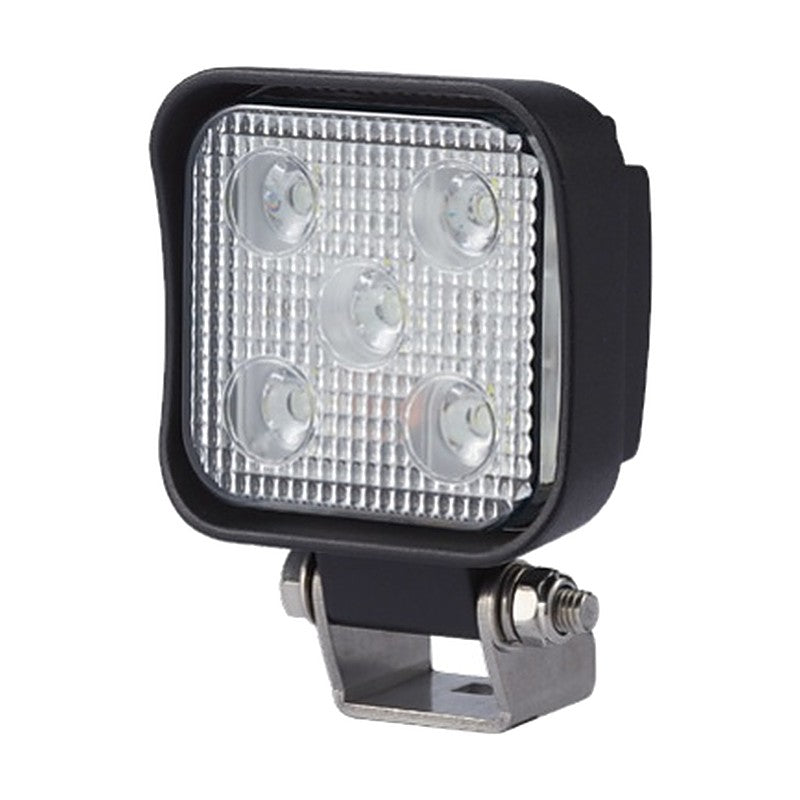

Qlight QWL20 / QWL20-DT Water and Dust Proof LED Work Light IP67

Compact square LED work light for construction and off-road machinery, IP67, DC12V-24V, with cable or DT04-2S connector.

Key features

Resists severe storms and heavy dust
IP67 waterproof and dust-resistant
Polycarbonate lens with excellent vibration and impact resistance
Long-life high-intensity LED for easy maintenance
For excavators, cranes and off-road vehicles
RoHS compliant

Specifications

Voltage	DC12V-24V
Operating voltage range	DC10V-30V
Power consumption	Max. 11.5W
Lens	Translucent
Light color	Cooldaylight
Color temperature	5,500-6,500K
Luminous flux	650lm
Illumination at 1m	4,300Lux
Protection rating	IP67
Ambient temperature	-40 to +75 °C
Materials	Housing-Al, Lens-PC, Bracket-STS
Certificates	CE, UL

QWL20		Connection: Cable entry \| Weight: 0.40kg \| Ordering suffix: -12/24
QWL20-DT		Connection: DT04-2S connector \| Ordering suffix: -12/24

LED Work LightsQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWL20 / QWL20-DT Water and Dust Proof LED Work Light IP67

Brand Qlight·LED Work Lights

Available part numbers (2)

QWL20, QWL20-DT

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
