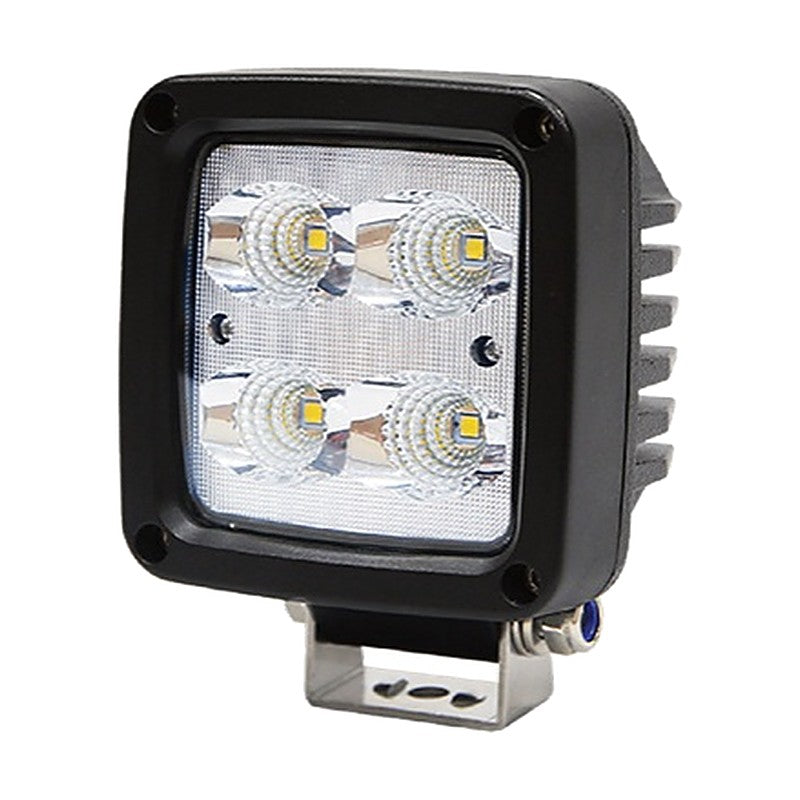

Qlight QWL40 / QWL40-DT Water and Dust Proof LED Work Light IP68

Square 40W LED work light for heavy machinery, IP68, DC12V-24V, with cable or DT04-2S connector.

Key features

Resists severe storms and heavy dust
IP68 waterproof and dust-resistant
Polycarbonate lens with excellent vibration and impact resistance
Long-life high-intensity LED for easy maintenance
For excavators, cranes and off-road vehicles
RoHS compliant

Specifications

Voltage	DC12V-24V
Power consumption	Max. 40W
Lens	Transparent
Light color	Cooldaylight
Color temperature	6,000-7,000K
Luminous flux	2,650lm
Illumination at 1m	4,000Lux
Protection rating	IP68
Ambient temperature	-40 to +65 °C
Weight	0.70kg
Materials	Housing-Al, Lens-PC, Bracket-STS
Certificates	CE, UL

QWL40		Connection: Cable entry \| Ordering suffix: -12/24
QWL40-DT		Connection: DT04-2S connector \| Ordering suffix: -12/24

LED Work LightsQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWL40 / QWL40-DT Water and Dust Proof LED Work Light IP68

Brand Qlight·LED Work Lights

Available part numbers (2)

QWL40, QWL40-DT

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
