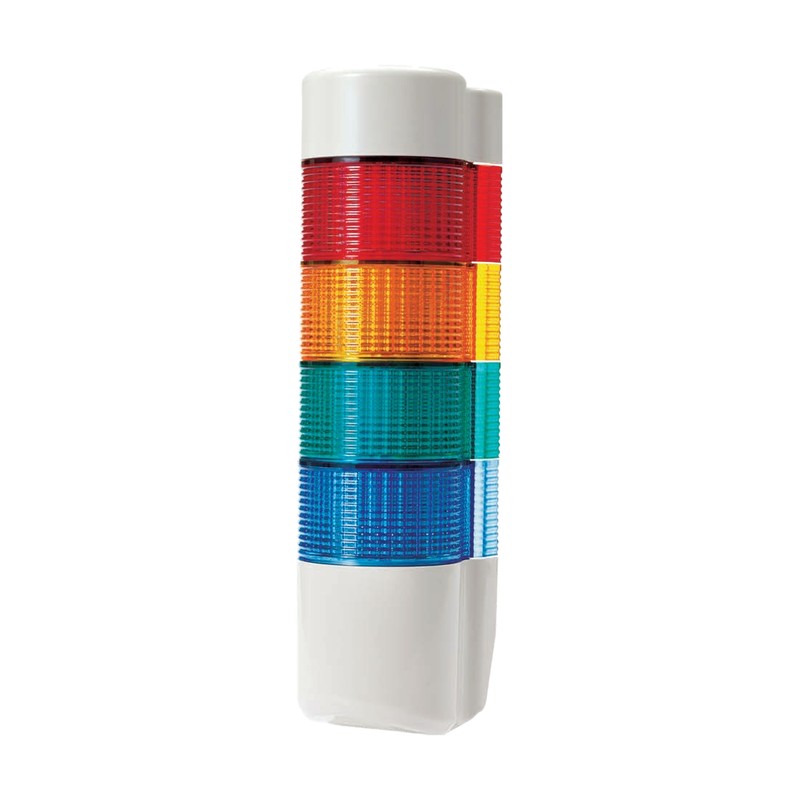

Qlight QWTD Ø70mm Wall Mount LED Signal Tower with Built-in Siren

Wall-mounted Ø70 mm LED signal tower with 1 to 5 tiers and a built-in siren offering 5-sound pattern groups.

Key features

Wall mount design reduces damage from moving obstacles or personnel
Round lens for superior side visibility
Selectable sound groups: WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms
Embedded speaker reduces contamination from debris
Steady or flashing mode selectable by wiring; custom color arrangements available

Specifications

Protection rating	IP54
Ambient temperature	-30 to +50 °C
Materials	Lens PC, cover ABS, case ABS
Sound volume	Max. 85 dB at 1 m
Layers	1-5
Voltage	DC12V, DC24V, AC110V-220V (free voltage 100-240V)
Sound groups	WS, WP, WM, WA
Colors	R, A, G, B, W
Compliance	RoHS

Qlight QWTD Ø70mm Wall Mount LED Signal Tower with Built-in Siren - reference 2

QWTDL		Function: Steady \| Layers: 1-5 \| Weight: 0.14-0.45kg
QWTDLF		Function: Steady/Flashing \| Layers: 1-5 \| Weight: 0.14-0.45kg

Sounder BeaconsQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWTD Ø70mm Wall Mount LED Signal Tower with Built-in Siren

Brand Qlight·Sounder Beacons

Available part numbers (2)

QWTDL, QWTDLF

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
