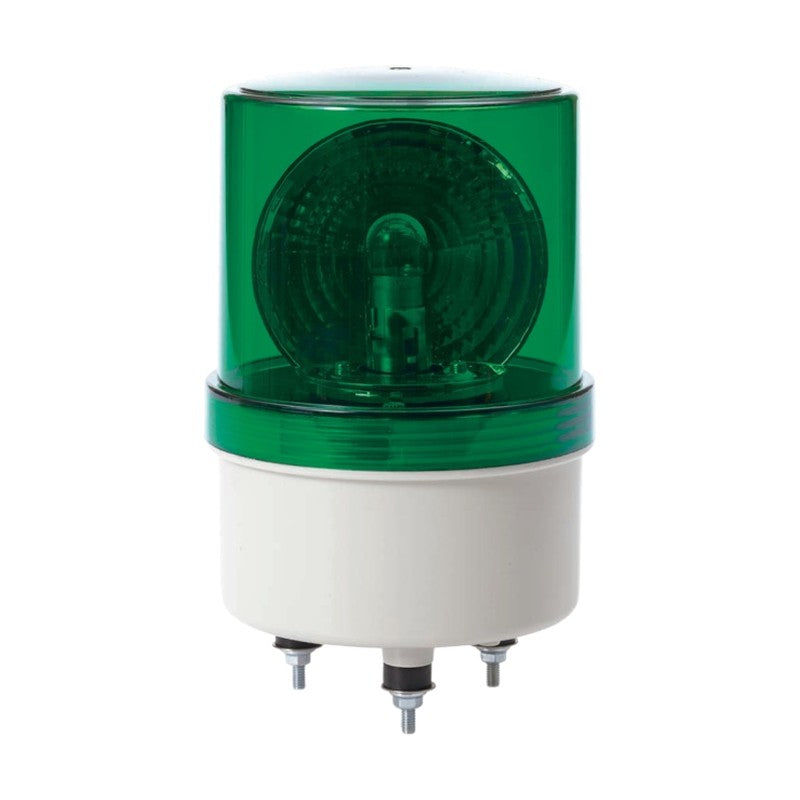

• Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light
1 1

Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light

Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light

100 mm bulb revolving warning light; S100UA adds a 12-sided diffusive lens.

Key features

  • S100UA: enhanced diffusion through a special 12-sided diffusive lens
  • Standard or built-in buzzer type
  • 2 buzzer sound types available as customization
  • Wall mount bracket options SWP125/SWM125

Specifications

Diameter Ø101mm
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Revolving speed 120-140 RPM
Sound level Max.90dB at 1m (BZ type)
Protection rating IP44
Light source Bulb 10W
Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light - reference 2
S100U Voltage: DC12V, DC24V, AC110V, AC220V | Current: 965mA (DC12V), 565mA (DC24V), 130mA (AC110V), 65mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 152mm | Weight: 0.36kg (DC), 0.59kg (AC) | Colors: R, A, G, B
S100UA Voltage: DC12V, DC24V, AC110V, AC220V | Current: 965mA (DC12V), 565mA (DC24V), 130mA (AC110V), 65mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 155mm | Lens: 12-sided diffusive | Weight: 0.36kg (DC), 0.59kg (AC) | Colors: R, A, G, B
Rotating Warning LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light

Brand Qlight·Rotating Warning Lights

Available part numbers (2)

S100U, S100UA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S100U/S100UA Ø100mm Bulb Revolving Warning Light - reference 2
0 selected
RFQ List (0)
Product codeSpec
S100UVoltage: DC12V, DC24V, AC110V, AC220V | Current: 965mA (DC12V), 565mA (DC24V), 130mA (AC110V), 65mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 152mm | Weight: 0.36kg (DC), 0.59kg (AC) | Colors: R, A, G, B
S100UAVoltage: DC12V, DC24V, AC110V, AC220V | Current: 965mA (DC12V), 565mA (DC24V), 130mA (AC110V), 65mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 155mm | Lens: 12-sided diffusive | Weight: 0.36kg (DC), 0.59kg (AC) | Colors: R, A, G, B
