• Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination
1 1

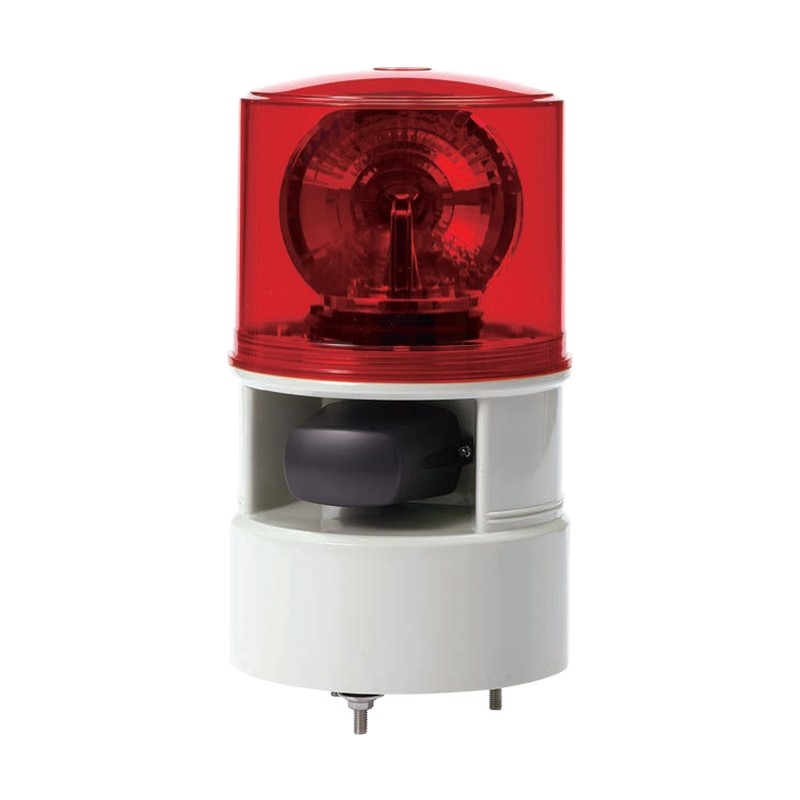

Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination

Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination

Self-standing Ø125 mm signal/warning light combined with an electric horn, available with LED revolving, LED steady/flashing, xenon strobe or bulb revolving light.

Key features

  • Audible and visual signaling in one unit
  • Sound groups: WS 5 warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable sounds
  • Horn volume up to 105 dB at 1 m
  • Choice of four light sources
  • Optional 8 harmonies (standard unit single harmony)

Specifications

Protection rating IP54
Materials Lens AS, housing ABS, reflector heat-resistant ABS
Sound volume Max. 105 dB at 1 m
Colors R-Red, A-Amber, G-Green, B-Blue
Body diameter Ø119mm
Height 215mm
Lens Ø115mm globe
Compliance RoHS
Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination - reference 2
S125DLR Light source: LED revolving 120-140 RPM | Voltage: DC12V (670mA), DC24V (410mA), AC110V (145mA), AC220V (75mA) | Ambient temperature: -20 to +50 °C
S125DL Light source: LED steady/flashing 60-80/min | Voltage: DC12V-24V (max. 520mA), AC110V, AC220V | Ambient temperature: -30 to +50 °C
S125DS Light source: Xenon strobe | Voltage: DC12V-24V (max. 1.4A), AC110V (230mA), AC220V (155mA) | Ambient temperature: -30 to +50 °C
S125D Light source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (830mA), AC110V (190mA), AC220V (95mA) | Ambient temperature: -20 to +50 °C
Sounder BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination

Brand Qlight·Sounder Beacons

Available part numbers (4)

S125DLR, S125DL, S125DS, S125D

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S125D Ø125mm Signal/Warning Light and Electric Horn Combination - reference 2
0 selected
RFQ List (0)
Product codeSpec
S125DLRLight source: LED revolving 120-140 RPM | Voltage: DC12V (670mA), DC24V (410mA), AC110V (145mA), AC220V (75mA) | Ambient temperature: -20 to +50 °C
S125DLLight source: LED steady/flashing 60-80/min | Voltage: DC12V-24V (max. 520mA), AC110V, AC220V | Ambient temperature: -30 to +50 °C
S125DSLight source: Xenon strobe | Voltage: DC12V-24V (max. 1.4A), AC110V (230mA), AC220V (155mA) | Ambient temperature: -30 to +50 °C
S125DLight source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (830mA), AC110V (190mA), AC220V (95mA) | Ambient temperature: -20 to +50 °C
