• Qlight S180U Ø180mm Bulb Revolving Warning Light
1 1

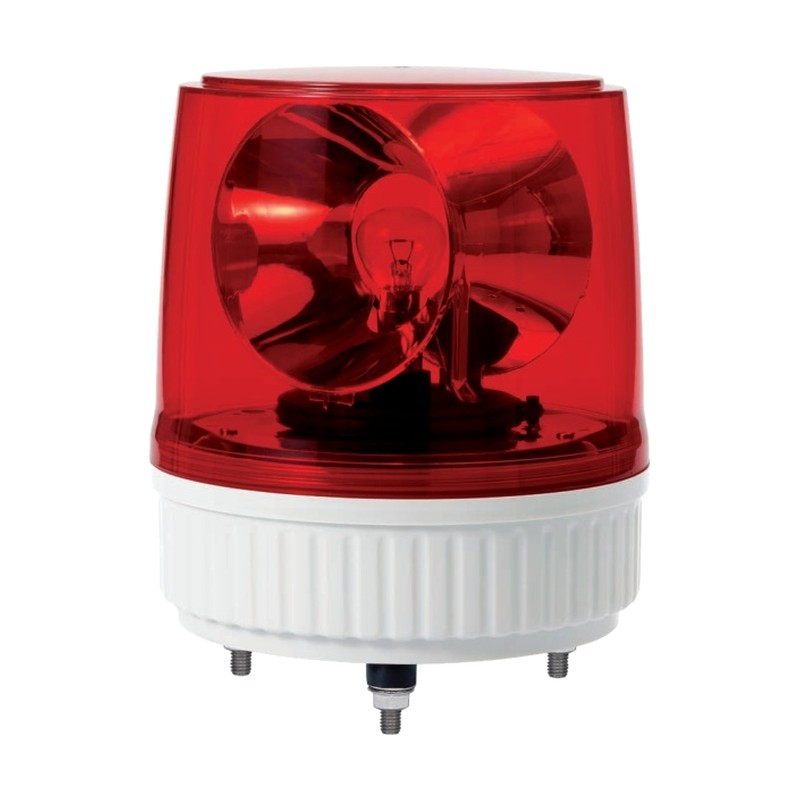

Qlight S180U Ø180mm Bulb Revolving Warning Light

Qlight S180U Ø180mm Bulb Revolving Warning Light

Large 180 mm 35 W bulb revolving warning light with dual reflectors for long-distance signalling.

Key features

  • 35W bulb and dual reflectors for long-distance signal transmission
  • Spare bulb inside the product for quick replacement
  • Standard or built-in buzzer type
  • 2 buzzer sound types available as customization

Specifications

Diameter Ø186mm
Height 216mm
Protection rating IP44
Sound level Max.90dB at 1m (BZ type)
Mounting 3-M8 bolt, PCD 140 (PCD 120 on request)
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector PC
Revolving speed 120-140 RPM
Light source Bulb 35W RP35 15S
S180U Voltage: DC12V, DC24V, AC110V, AC220V | Current: 3.4A (DC12V), 1.65A (DC24V), 410mA (AC110V), 190mA (AC220V) | Weight: 0.89kg (DC), 1.65kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | CE: DC24V
Rotating Warning LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S180U Ø180mm Bulb Revolving Warning Light

Brand Qlight·Rotating Warning Lights

Available part numbers (1)

S180U

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S180UVoltage: DC12V, DC24V, AC110V, AC220V | Current: 3.4A (DC12V), 1.65A (DC24V), 410mA (AC110V), 190mA (AC220V) | Weight: 0.89kg (DC), 1.65kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | CE: DC24V
