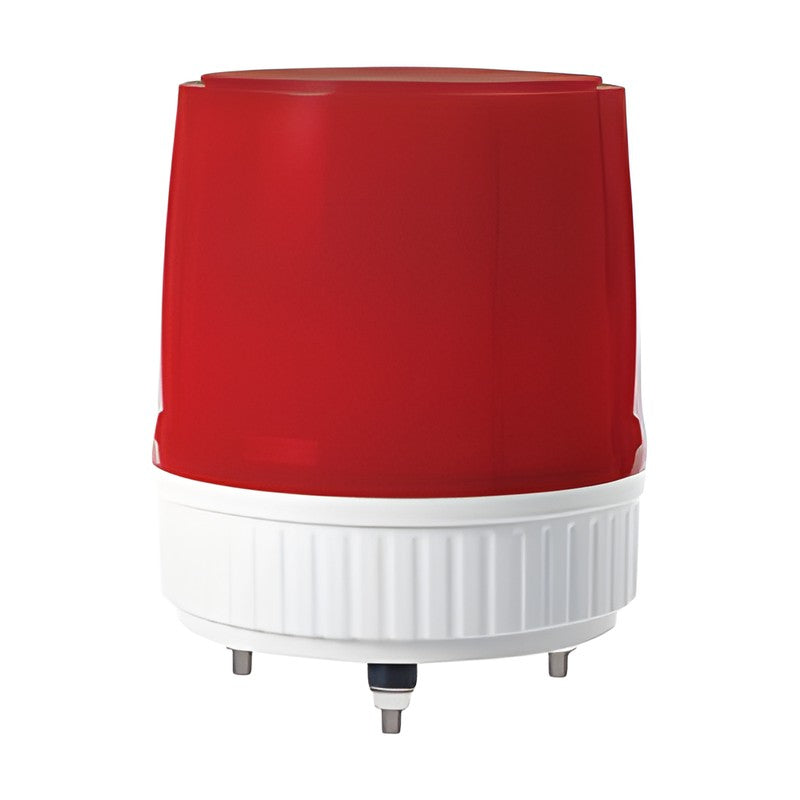

Qlight S180UHS Ø180mm Hyper Brightness Xenon Lamp Strobe Signal Light

Large 180 mm hyper brightness strobe signal light with three high-intensity xenon lamps for fog or dusty sites.

Key features

Three high-intensity xenon lamps for improved long-distance visibility
Suited to harbors with fog and steel mills with dust
Lamp connector structure for convenient lamp change
Standard or built-in buzzer type

Specifications

Diameter	Ø186mm
Height	216mm
Protection rating	IP44
Sound level	Max.90dB at 1m (BZ type)
Mounting	3-M8 bolt, PCD 140 (PCD 120 on request)
Ambient temperature	-30 to +50 °C
Material	Lens ABS, Housing ABS
Flashing rate	60-80/min (double flash)
Light source	Xenon lamp (W type, BH0647(G))

S180UHS

Voltage: DC12V-24V, AC110V, AC220V | Current: Max.2.28A (DC), 890mA (AC110V), 500mA (AC220V) | Weight: 1.18kg (DC), 1.02kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B

Signal BeaconsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S180UHS Ø180mm Hyper Brightness Xenon Lamp Strobe Signal Light

Brand Qlight·Signal Beacons

Available part numbers (1)

S180UHS

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S180UHS	Voltage: DC12V-24V, AC110V, AC220V \| Current: Max.2.28A (DC), 890mA (AC110V), 500mA (AC220V) \| Weight: 1.18kg (DC), 1.02kg (AC) \| Buzzer option: none or BZ (built-in buzzer) \| Colors: R, A, G, B
