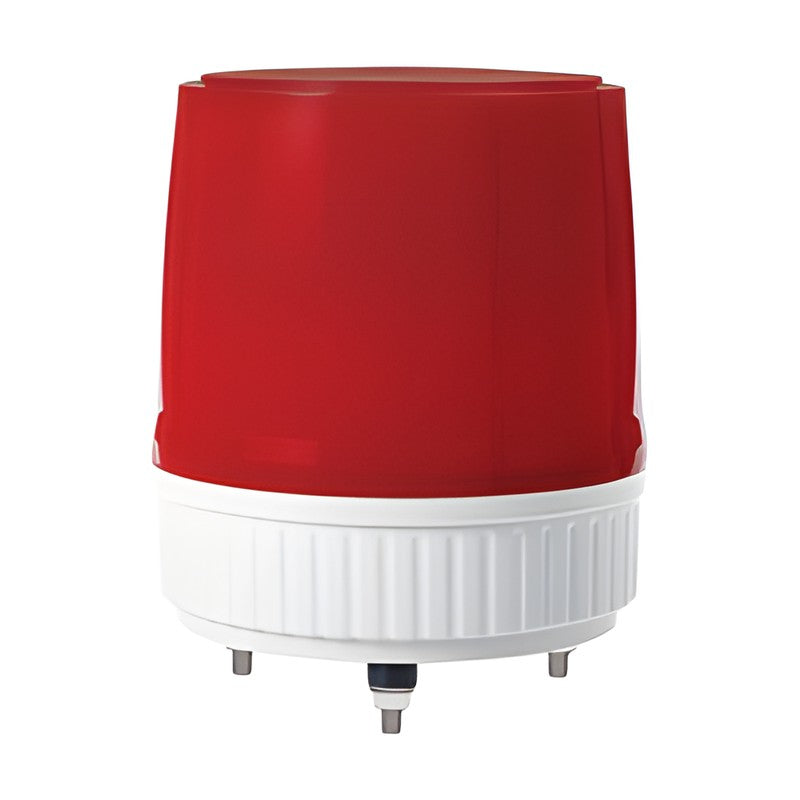

• Qlight S180US Ø180mm Xenon Lamp Strobe Signal Light
1 1

Qlight S180US Ø180mm Xenon Lamp Strobe Signal Light

Qlight S180US Ø180mm Xenon Lamp Strobe Signal Light

Large 180 mm xenon lamp strobe signal light with translucent lens for long-distance visibility.

Key features

  • High capacity xenon lamp for long-distance visibility
  • Translucent lens gives a luminous, subdued signal
  • Lamp connector structure for convenient lamp change
  • Standard or built-in buzzer type

Specifications

Diameter Ø186mm
Height 216mm
Protection rating IP44
Sound level Max.90dB at 1m (BZ type)
Mounting 3-M8 bolt, PCD 140 (PCD 120 on request)
Ambient temperature -30 to +50 °C
Material Lens ABS, Housing ABS
Flashing rate 60-80/min (double flash)
Light source Xenon lamp (W type, BH0647(G))
S180US Voltage: DC12V-24V, AC110V, AC220V | Current: Max.1.35A (DC), 300mA (AC110V), 220mA (AC220V) | Weight: 0.84kg (DC), 0.80kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S180US Ø180mm Xenon Lamp Strobe Signal Light

Brand Qlight·Signal Beacons

Available part numbers (1)

S180US

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S180USVoltage: DC12V-24V, AC110V, AC220V | Current: Max.1.35A (DC), 300mA (AC110V), 220mA (AC220V) | Weight: 0.84kg (DC), 0.80kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
