Qlight S60AD Ø60mm Signal Light with High Volume Built-in Buzzer

Qlight S60AD Ø60mm Signal Light with High Volume Built-in Buzzer

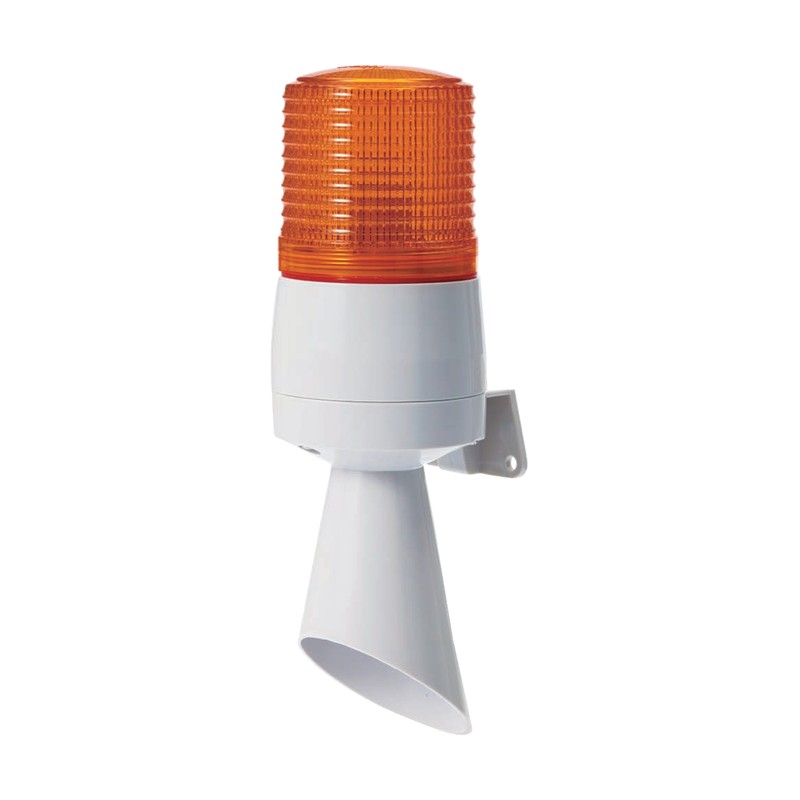

Wall-mounted Ø60 mm signal light combined with a cone-shaped high-volume buzzer horn in a vertical configuration.

Key features

  • Ø60 mm signal light with built-in buzzer up to 95 dB at 1 m
  • Cone-shaped horn diffuses sound for clear signals
  • Suited to applications needing downward audible signals from elevated locations
  • Available with LED steady/flashing, xenon strobe or bulb light source
  • 2 buzzer sound types (prolonged and staccato) available as customization

Specifications

Protection rating IP54
Ambient temperature -30 to +50 °C
Materials Lens AS, body ABS, reflector heat-resistant ABS
Sound volume Max. 95 dB at 1 m
Colors R-Red, A-Amber, G-Green, B-Blue
Mounting Wall mount
S60ADL Light source: LED steady/flashing | Voltage: DC12V (165mA), DC24V (125mA), AC110V (55mA), AC220V (35mA) | Weight: 0.17kg DC, 0.32kg AC
S60ADS Light source: Xenon strobe | Voltage: DC12V (550mA), DC24V (285mA), AC110V (85mA), AC220V (75mA) | Weight: 0.29kg DC, 0.27kg AC
S60ADB Light source: Bulb steady/flashing 10W T16x35 15S | Voltage: DC12V (1A), DC24V (555mA), AC110V (160mA), AC220V (115mA) | Weight: 0.18-0.19kg
Sounder BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S60AD Ø60mm Signal Light with High Volume Built-in Buzzer

Brand Qlight·Sounder Beacons

Available part numbers (3)

S60ADL, S60ADS, S60ADB

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S60ADLLight source: LED steady/flashing | Voltage: DC12V (165mA), DC24V (125mA), AC110V (55mA), AC220V (35mA) | Weight: 0.17kg DC, 0.32kg AC
S60ADSLight source: Xenon strobe | Voltage: DC12V (550mA), DC24V (285mA), AC110V (85mA), AC220V (75mA) | Weight: 0.29kg DC, 0.27kg AC
S60ADBLight source: Bulb steady/flashing 10W T16x35 15S | Voltage: DC12V (1A), DC24V (555mA), AC110V (160mA), AC220V (115mA) | Weight: 0.18-0.19kg
