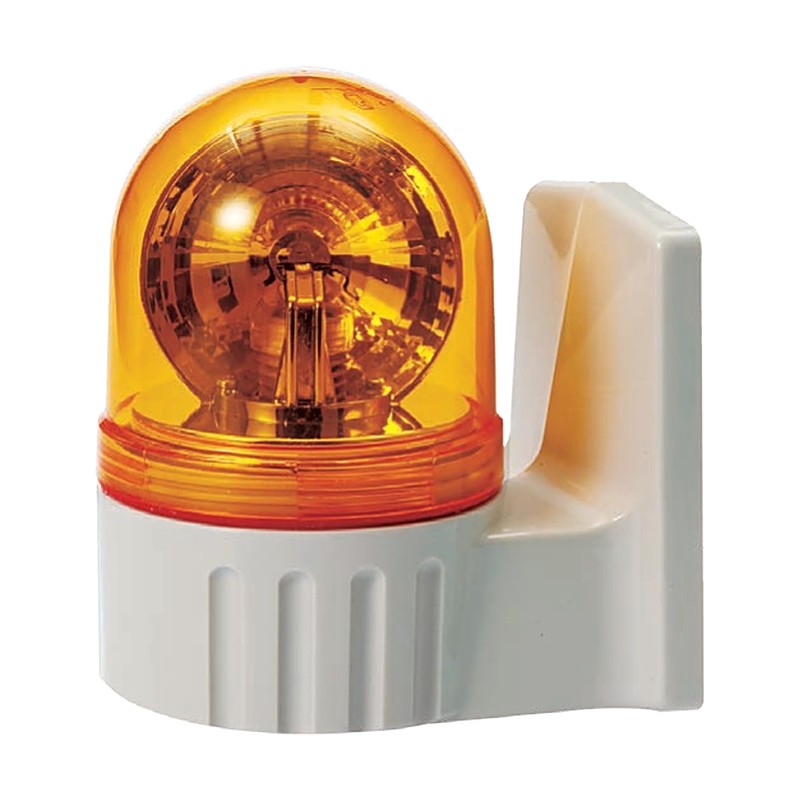

Qlight S80ADR/S80ALR Ø80mm LED Revolving Warning Light with Wall Mount

Qlight S80ADR/S80ALR Ø80mm LED Revolving Warning Light with Wall Mount

80 mm LED revolving warning light with integrated side wall mount and terminal block.

Key features

  • Equipped wall mount; no additional bracket required
  • Terminal block inside the side mount bracket for easy wiring
  • Standard or built-in buzzer type (max. 90dB at 1m)

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Revolving speed 120-140 RPM
Light source LED
Depth 113mm
RoHS Compliant
Qlight S80ADR/S80ALR Ø80mm LED Revolving Warning Light with Wall Mount - reference 2
S80ADR Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 125mm | Weight: 0.34kg (DC), 0.49kg (AC) | Colors: R, A, G, B
S80ALR Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 127mm | Weight: 0.34kg (DC), 0.49kg (AC) | Colors: R, A, G, B
Rotating Warning LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80ADR/S80ALR Ø80mm LED Revolving Warning Light with Wall Mount

Brand Qlight·Rotating Warning Lights

Available part numbers (2)

S80ADR, S80ALR

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S80ADR/S80ALR Ø80mm LED Revolving Warning Light with Wall Mount - reference 2
0 selected
RFQ List (0)
Product codeSpec
S80ADRVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 125mm | Weight: 0.34kg (DC), 0.49kg (AC) | Colors: R, A, G, B
S80ALRVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 127mm | Weight: 0.34kg (DC), 0.49kg (AC) | Colors: R, A, G, B
