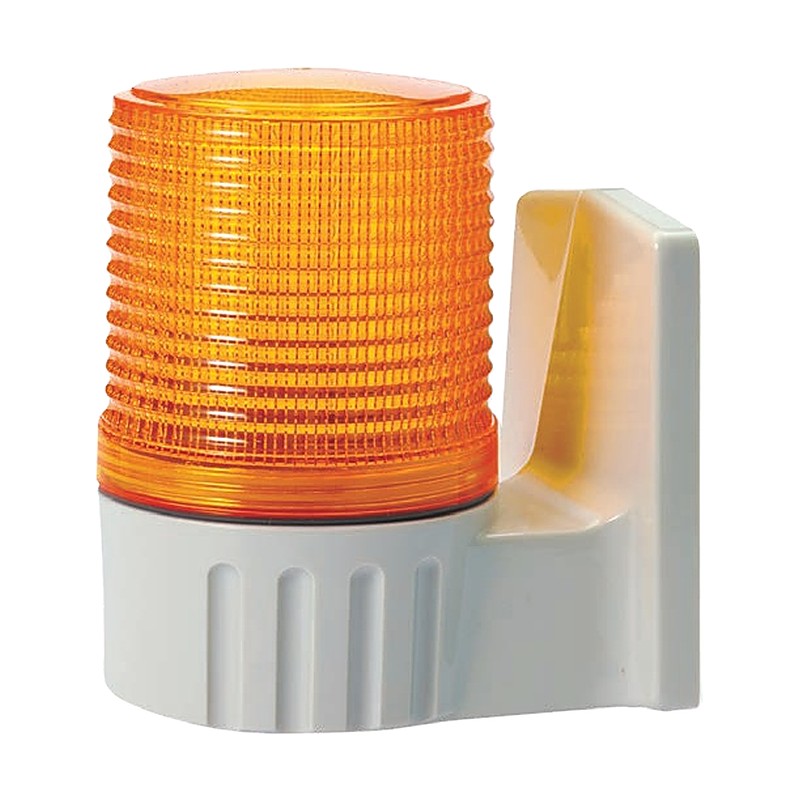

Qlight S80AL Ø80mm LED Steady/Flashing Signal Light with Wall Mount

Qlight S80AL Ø80mm LED Steady/Flashing Signal Light with Wall Mount

80 mm LED steady/flashing signal light with integrated side wall mount and terminal block.

Key features

  • Equipped wall mount; no additional bracket required
  • Terminal block inside the side mount bracket for easy wiring
  • Switch for selection between steady and flashing mode
  • Standard or built-in buzzer type (max. 90dB at 1m)

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -30 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Flashing rate 60-80/min
Light source LED
RoHS Compliant
Height 127mm
Depth 113mm
S80AL Voltage: DC12V-24V, AC110V, AC220V | Current: Max.145mA (DC), 35mA (AC110V), 20mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.26kg (DC), 0.35kg (AC) | Colors: R, A, G, B | CE: DC12V-24V
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80AL Ø80mm LED Steady/Flashing Signal Light with Wall Mount

Brand Qlight·Signal Beacons

Available part numbers (1)

S80AL

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S80ALVoltage: DC12V-24V, AC110V, AC220V | Current: Max.145mA (DC), 35mA (AC110V), 20mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.26kg (DC), 0.35kg (AC) | Colors: R, A, G, B | CE: DC12V-24V
