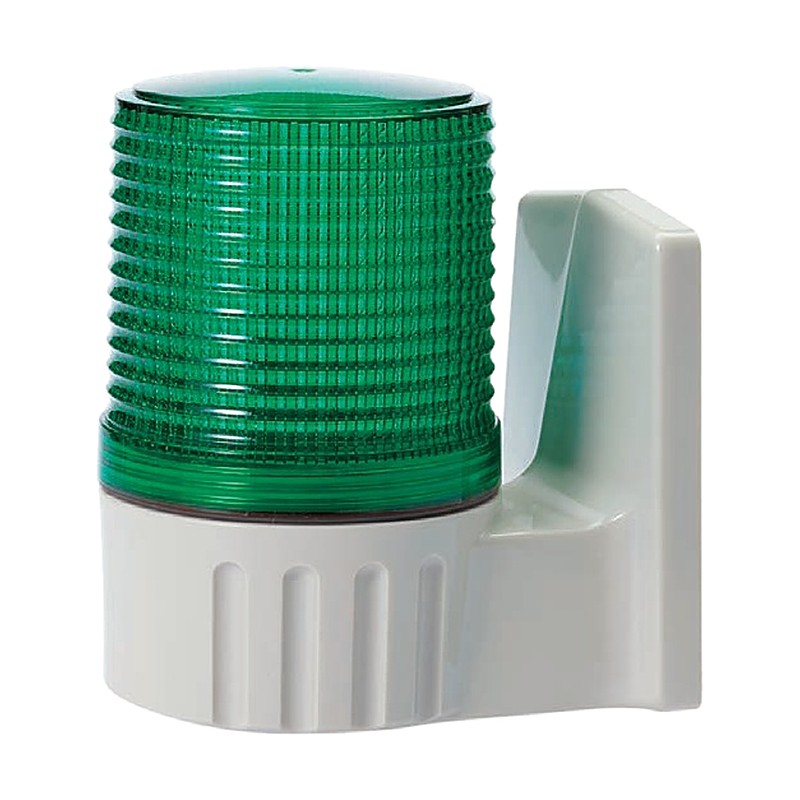

Qlight S80AS Ø80mm Xenon Lamp Strobe Signal Light with Wall Mount

Qlight S80AS Ø80mm Xenon Lamp Strobe Signal Light with Wall Mount

80 mm xenon strobe signal light with integrated wall mount, terminal block and optional buzzer.

Key features

  • Equipped wall mount with terminal block for easy wiring
  • High instantaneous luminous efficiency close to natural light
  • Lamp connector structure for convenient lamp replacement
  • Standard or built-in buzzer type (max. 90dB at 1m)

Specifications

Diameter Ø83mm
Ambient temperature -30 to +50 °C
Material Lens AS, Housing ABS
Flashing rate 60-80/min
Light source Xenon lamp (I type, BGA2120-BBC)
Protection rating IP44
Height 127mm
Depth 113mm
S80AS Voltage: DC12V-24V, AC110V, AC220V | Current: Max.510mA (DC), 210mA (AC110V), 200mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.27kg (DC), 0.24kg (AC) | Colors: R, A, G, B
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80AS Ø80mm Xenon Lamp Strobe Signal Light with Wall Mount

Brand Qlight·Signal Beacons

Available part numbers (1)

S80AS

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S80ASVoltage: DC12V-24V, AC110V, AC220V | Current: Max.510mA (DC), 210mA (AC110V), 200mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.27kg (DC), 0.24kg (AC) | Colors: R, A, G, B
