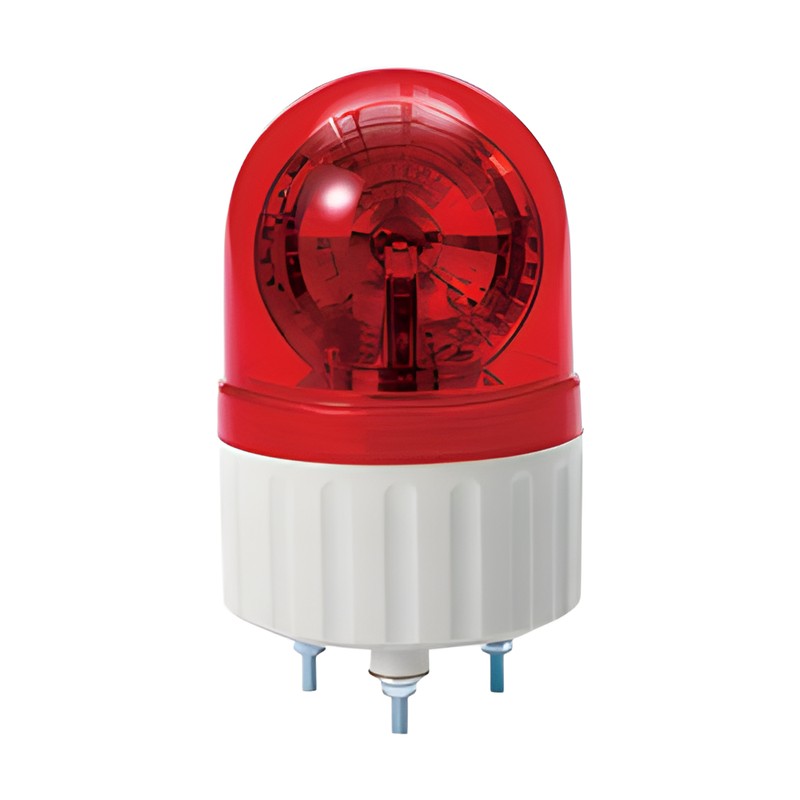

Qlight S80DR/S80LR Ø80mm LED Revolving Warning Light

Qlight S80DR/S80LR Ø80mm LED Revolving Warning Light

80 mm LED revolving warning light with LED light collecting system and multifaceted reflector.

Key features

  • LED light collecting system with special multifaceted reflector
  • Excellent omni-directional visibility
  • Standard or built-in buzzer type (max. 90dB at 1m)
  • Wall mount bracket options TWS80/TWA80

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Revolving speed 120-140 RPM
Light source LED
RoHS Compliant
Qlight S80DR/S80LR Ø80mm LED Revolving Warning Light - reference 2
S80DR Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 131mm | Weight: 0.23kg (DC), 0.38kg (AC) | Colors: R, A, G, B
S80LR Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 133mm | Weight: 0.23kg (DC), 0.38kg (AC) | Colors: R, A, G, B
Rotating Warning LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80DR/S80LR Ø80mm LED Revolving Warning Light

Brand Qlight·Rotating Warning Lights

Available part numbers (2)

S80DR, S80LR

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S80DR/S80LR Ø80mm LED Revolving Warning Light - reference 2
0 selected
RFQ List (0)
Product codeSpec
S80DRVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 131mm | Weight: 0.23kg (DC), 0.38kg (AC) | Colors: R, A, G, B
S80LRVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 133mm | Weight: 0.23kg (DC), 0.38kg (AC) | Colors: R, A, G, B
