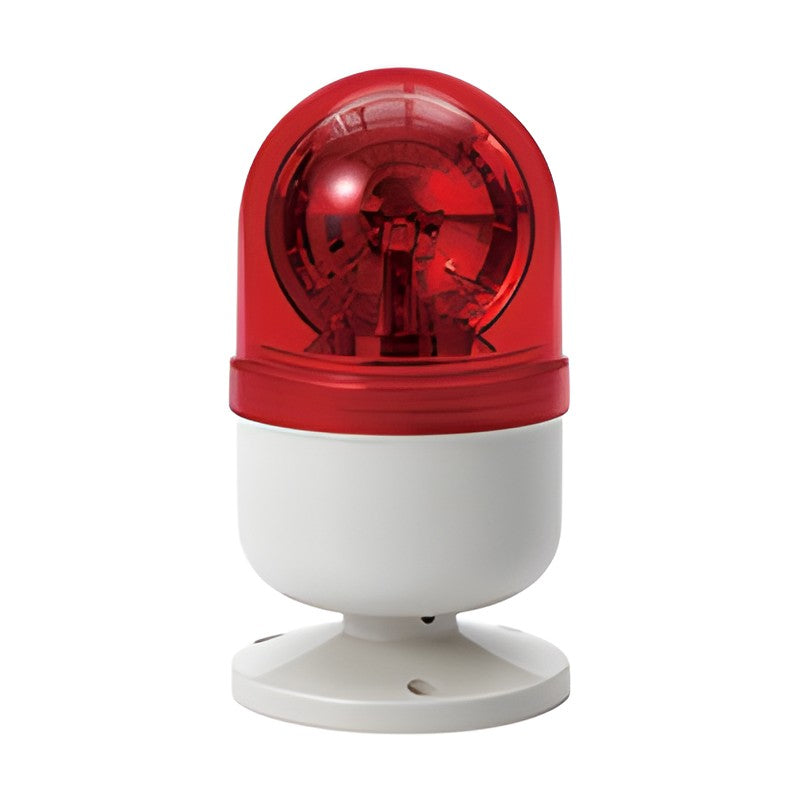

Qlight S80DRK/S80LRK Ø80mm LED Revolving Warning Light with Circular Mount Bracket

Qlight S80DRK/S80LRK Ø80mm LED Revolving Warning Light with Circular Mount Bracket

80 mm LED revolving warning light with circular mount bracket for pole mounting.

Key features

  • Special power transmission system reduces noise and wear
  • Circular mount bracket for convenient installation
  • Pole mount options LB18, LW18, QZ18, SZ18, QL18, SL18
  • No buzzer option

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Revolving speed 120-140 RPM
Light source LED
RoHS Compliant
Qlight S80DRK/S80LRK Ø80mm LED Revolving Warning Light with Circular Mount Bracket - reference 2
S80DRK Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Height: 153mm | Weight: 0.24kg (DC), 0.43kg (AC) | Colors: R, A, G, B
S80LRK Voltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Height: 155mm | Weight: 0.24kg (DC), 0.43kg (AC) | Colors: R, A, G, B
Rotating Warning LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80DRK/S80LRK Ø80mm LED Revolving Warning Light with Circular Mount Bracket

Brand Qlight·Rotating Warning Lights

Available part numbers (2)

S80DRK, S80LRK

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S80DRK/S80LRK Ø80mm LED Revolving Warning Light with Circular Mount Bracket - reference 2
0 selected
RFQ List (0)
Product codeSpec
S80DRKVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Height: 153mm | Weight: 0.24kg (DC), 0.43kg (AC) | Colors: R, A, G, B
S80LRKVoltage: DC12V, DC24V, AC110V, AC220V | Current: 180mA (DC12V), 125mA (DC24V), 35mA (AC110V), 25mA (AC220V) | Height: 155mm | Weight: 0.24kg (DC), 0.43kg (AC) | Colors: R, A, G, B
