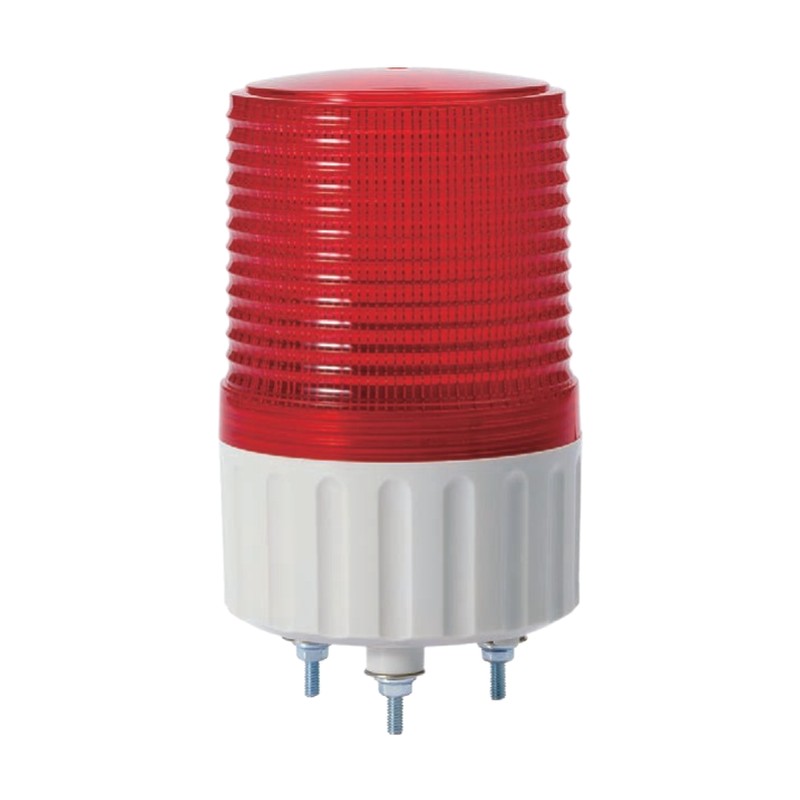

Qlight S80L Ø80mm LED Steady/Flashing Signal Light

Qlight S80L Ø80mm LED Steady/Flashing Signal Light

80 mm LED steady/flashing signal light with indirect light diffusing multi-reflector system.

Key features

  • Multi reflector system emits an intense and constant signal light
  • Switch for selection between steady and flashing mode
  • Standard or built-in buzzer type (max. 90dB at 1m)
  • DC type has a free-voltage range of 10V-30V

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -30 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Flashing rate 60-80/min
Light source LED
RoHS Compliant
Height 133mm
S80L Voltage: DC12V-24V, AC110V, AC220V | Current: Max.145mA (DC), 35mA (AC110V), 20mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.20kg (DC), 0.32kg (AC) | Colors: R, A, G, B | CE: DC12V-24V
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80L Ø80mm LED Steady/Flashing Signal Light

Brand Qlight·Signal Beacons

Available part numbers (1)

S80L

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S80LVoltage: DC12V-24V, AC110V, AC220V | Current: Max.145mA (DC), 35mA (AC110V), 20mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Weight: 0.20kg (DC), 0.32kg (AC) | Colors: R, A, G, B | CE: DC12V-24V
