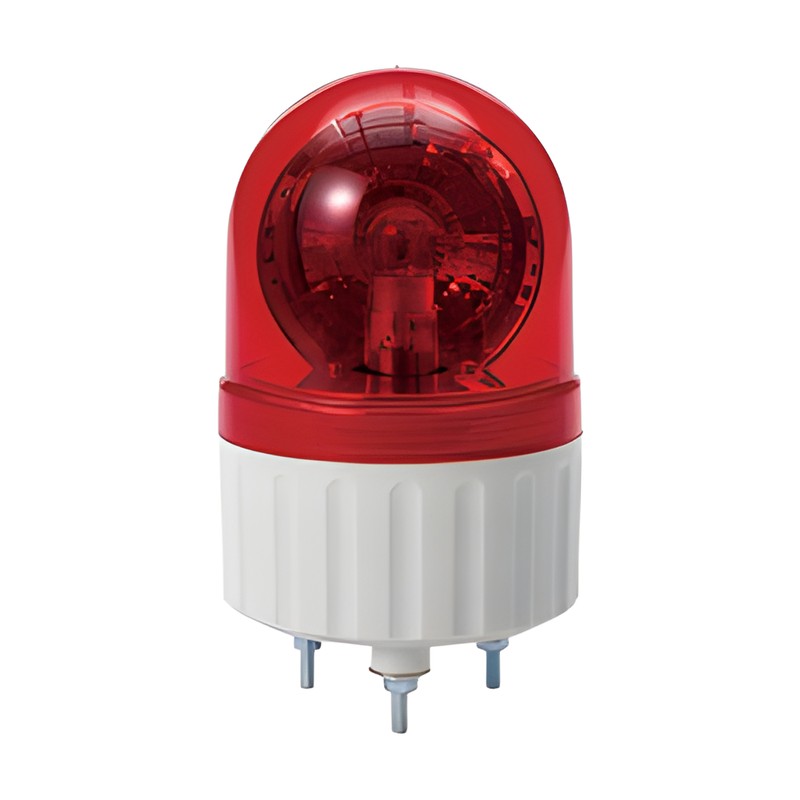

Qlight S80R/S80U Ø80mm Bulb Revolving Warning Light

Qlight S80R/S80U Ø80mm Bulb Revolving Warning Light

80 mm bulb revolving warning light with optional built-in buzzer.

Key features

  • V-belt power transmission system reduces noise and wear
  • Standard or built-in buzzer type (max. 90dB at 1m)
  • AC compatible type selects AC110V or AC220V by wiring
  • Wall mount bracket options TWS80/TWA80

Specifications

Diameter Ø83mm
Protection rating IP44
Ambient temperature -20 to +50 °C
Material Lens AS, Housing ABS, Reflector heat resistant ABS
Revolving speed 120-140 RPM
Light source Bulb
Sound level Max.90dB at 1m (BZ type)
Qlight S80R/S80U Ø80mm Bulb Revolving Warning Light - reference 2
S80R Voltage: DC12V, DC24V, AC110V, AC220V | Current: 530mA (DC12V), 370mA (DC24V), 80mA (AC110V), 40mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 131mm | Weight: 0.28kg (DC), 0.48kg (AC) | Colors: R, A, G, B
S80U Voltage: DC12V, DC24V, AC110V, AC220V | Current: 530mA (DC12V), 370mA (DC24V), 80mA (AC110V), 40mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 133mm | Weight: 0.28kg (DC), 0.48kg (AC) | Colors: R, A, G, B
Rotating Warning LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S80R/S80U Ø80mm Bulb Revolving Warning Light

Brand Qlight·Rotating Warning Lights

Available part numbers (2)

S80R, S80U

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight S80R/S80U Ø80mm Bulb Revolving Warning Light - reference 2
0 selected
RFQ List (0)
Product codeSpec
S80RVoltage: DC12V, DC24V, AC110V, AC220V | Current: 530mA (DC12V), 370mA (DC24V), 80mA (AC110V), 40mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 131mm | Weight: 0.28kg (DC), 0.48kg (AC) | Colors: R, A, G, B
S80UVoltage: DC12V, DC24V, AC110V, AC220V | Current: 530mA (DC12V), 370mA (DC24V), 80mA (AC110V), 40mA (AC220V) | Buzzer option: none or BZ (built-in buzzer) | Height: 133mm | Weight: 0.28kg (DC), 0.48kg (AC) | Colors: R, A, G, B
