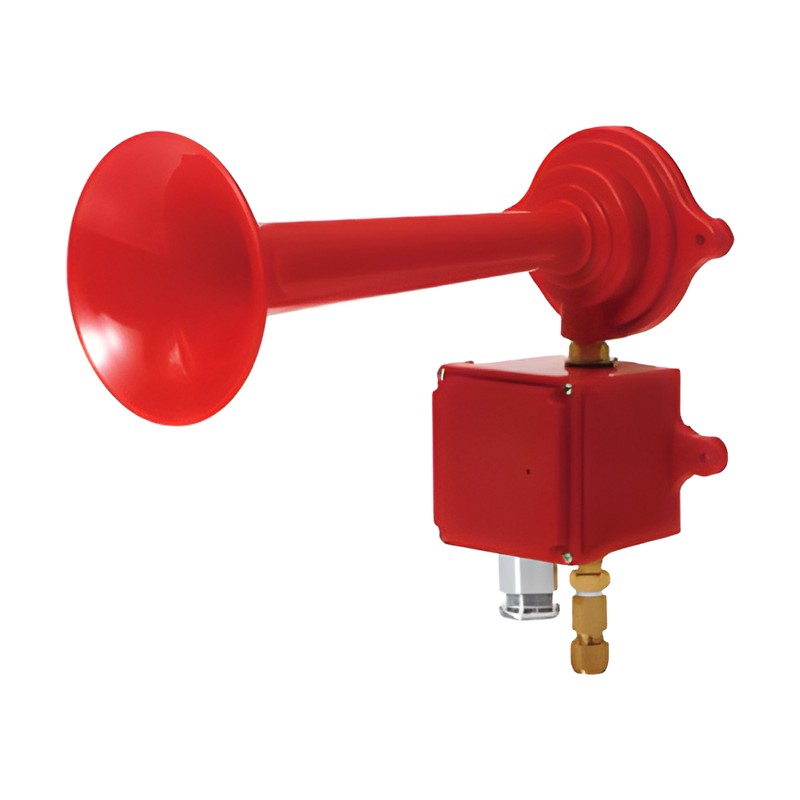

Qlight SANA Air Horn with Solenoid Valve Box, 130 dB

Qlight SANA Air Horn with Solenoid Valve Box, 130 dB

Compressed-air diaphragm horn with solenoid valve box for engine rooms and other noisy areas on vessels and plants.

Key features

  • High-volume horn powered by compressed air (5-7 kg/cm2)
  • Low air consumption and long service life
  • Suited to engine rooms, pump room phone alarms and emergency alarms
  • Customization: separate horn and valve box, non-return valve, Y filter, regulator

Specifications

Sound level Max. 130 dB at 1 m
Voltage DC24V (450mA), AC110V (200mA), AC220V (100mA)
Air pressure 5-7 kg/cm2
Protection rating IP56
Ambient temperature -20 to +60 °C
Materials Horn PC, solenoid valve box ABS
Air connection 10C nipple
Colors R, BK (black), 7.5BG (cyan)
Mounting Wall mount
Qlight SANA Air Horn with Solenoid Valve Box, 130 dB - reference 2Qlight SANA Air Horn with Solenoid Valve Box, 130 dB - reference 3
SANA200 Frequency: 200-300Hz | Weight: 1.19kg | Dimensions: Ø146 horn, depth 333mm
SANA400 Frequency: 400-600Hz | Weight: 1.13kg | Dimensions: Ø110 horn, depth 193mm
SANA700 Frequency: 700-800Hz | Weight: 1.07kg | Dimensions: Ø101 horn, depth 144mm
Air HornsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SANA Air Horn with Solenoid Valve Box, 130 dB

Brand Qlight·Air Horns

Available part numbers (3)

SANA200, SANA400, SANA700

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SANA Air Horn with Solenoid Valve Box, 130 dB - reference 2Qlight SANA Air Horn with Solenoid Valve Box, 130 dB - reference 3
0 selected
RFQ List (0)
Product codeSpec
SANA200Frequency: 200-300Hz | Weight: 1.19kg | Dimensions: Ø146 horn, depth 333mm
SANA400Frequency: 400-600Hz | Weight: 1.13kg | Dimensions: Ø110 horn, depth 193mm
SANA700Frequency: 700-800Hz | Weight: 1.07kg | Dimensions: Ø101 horn, depth 144mm
