Qlight SAOL2 / SAOL2P Low Intensity LED Aviation Obstruction Light (ICAO Type A)

Qlight SAOL2 / SAOL2P Low Intensity LED Aviation Obstruction Light (ICAO Type A)

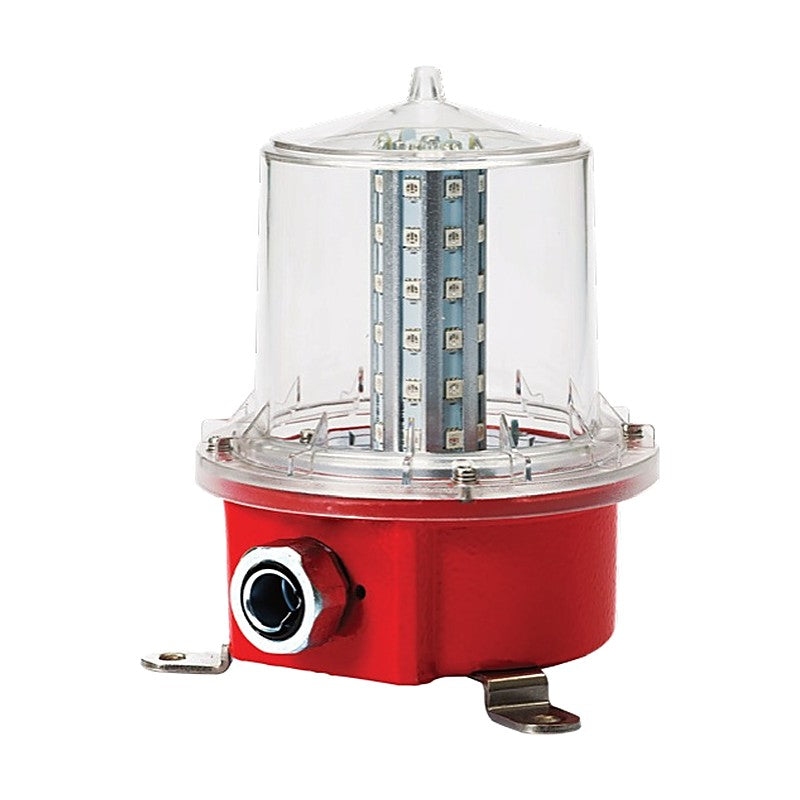

Red steady low-intensity (ICAO Type A) LED aviation obstruction light with aluminum housing, in self-stand (SAOL2) or pole-mount (SAOL2P) versions.

Key features

  • ICAO standard Low intensity A type
  • For fixed objects less than 150 m from land or water surface
  • Choice of self-stand or pole-mount type
  • Terminals inside the housing for wiring; no exposed wire on pole-mount model
  • Optional built-in darkness sensor, amber housing and mounting bracket

Specifications

Voltage DC12V, DC24V, AC110V-220V
Light color Red
Light function Steady
Luminous intensity 19cd ±25%
Protection rating IP66
Ambient temperature -30 to +50 °C
Power consumption Max. 24W
Cable entry 1/2" PF, Ø20
Housing color Red
Materials Lens-PC, Housing-Al, Bracket-STS316L, Pole-STS
Certificates ICAO, CE
Qlight SAOL2 / SAOL2P Low Intensity LED Aviation Obstruction Light (ICAO Type A) - reference 2
SAOL2 Mount: Self stand | Weight: 1.02kg | Size: Ø139 x 185 mm | Ordering suffix: -12, -24, -110/220 | Color: R
SAOL2P Mount: Pole | Weight: 1.58kg | Size: Ø139 x 274 mm | Ordering suffix: -12, -24, -110/220 | Color: R
Aviation Obstruction LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SAOL2 / SAOL2P Low Intensity LED Aviation Obstruction Light (ICAO Type A)

Brand Qlight·Aviation Obstruction Lights

Available part numbers (2)

SAOL2, SAOL2P

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SAOL2 / SAOL2P Low Intensity LED Aviation Obstruction Light (ICAO Type A) - reference 2
0 selected
RFQ List (0)
Product codeSpec
SAOL2Mount: Self stand | Weight: 1.02kg | Size: Ø139 x 185 mm | Ordering suffix: -12, -24, -110/220 | Color: R
SAOL2PMount: Pole | Weight: 1.58kg | Size: Ø139 x 274 mm | Ordering suffix: -12, -24, -110/220 | Color: R
