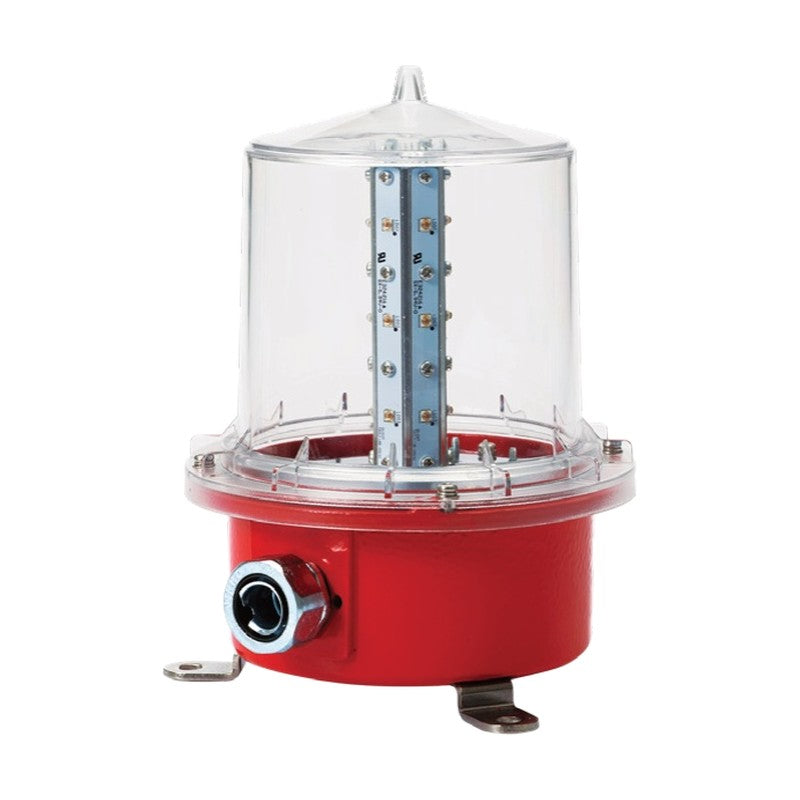

Qlight SAOL3 / SAOL3P Low Intensity LED Aviation Obstruction Light (ICAO Type B)

Qlight SAOL3 / SAOL3P Low Intensity LED Aviation Obstruction Light (ICAO Type B)

Red steady low-intensity (ICAO Type B) LED aviation obstruction light with aluminum housing, in self-stand (SAOL3) or pole-mount (SAOL3P) versions.

Key features

  • ICAO standard Low intensity B type
  • For fixed objects less than 150 m from land or water surface
  • Choice of self-stand or pole-mount type
  • Terminals inside the housing for wiring; no exposed wire on pole-mount model
  • Optional built-in darkness sensor, amber housing and mounting bracket

Specifications

Voltage DC12V, DC24V, AC110V-220V
Light color Red
Light function Steady
Luminous intensity 42cd ±10%
Protection rating IP66
Ambient temperature -30 to +50 °C
Power consumption Max. 30W
Cable entry 1/2" PF, Ø20
Housing color Red
Materials Lens-PC, Housing-Al, Bracket-STS316L, Pole-STS
Certificates ICAO, CE
Qlight SAOL3 / SAOL3P Low Intensity LED Aviation Obstruction Light (ICAO Type B) - reference 2
SAOL3 Mount: Self stand | Weight: 1.05kg | Size: Ø157 x 215 mm | Ordering suffix: -12, -24, -110/220 | Color: R
SAOL3P Mount: Pole | Weight: 1.61kg | Size: Ø157 x 303 mm | Ordering suffix: -12, -24, -110/220 | Color: R
Aviation Obstruction LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SAOL3 / SAOL3P Low Intensity LED Aviation Obstruction Light (ICAO Type B)

Brand Qlight·Aviation Obstruction Lights

Available part numbers (2)

SAOL3, SAOL3P

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SAOL3 / SAOL3P Low Intensity LED Aviation Obstruction Light (ICAO Type B) - reference 2
0 selected
RFQ List (0)
Product codeSpec
SAOL3Mount: Self stand | Weight: 1.05kg | Size: Ø157 x 215 mm | Ordering suffix: -12, -24, -110/220 | Color: R
SAOL3PMount: Pole | Weight: 1.61kg | Size: Ø157 x 303 mm | Ordering suffix: -12, -24, -110/220 | Color: R
