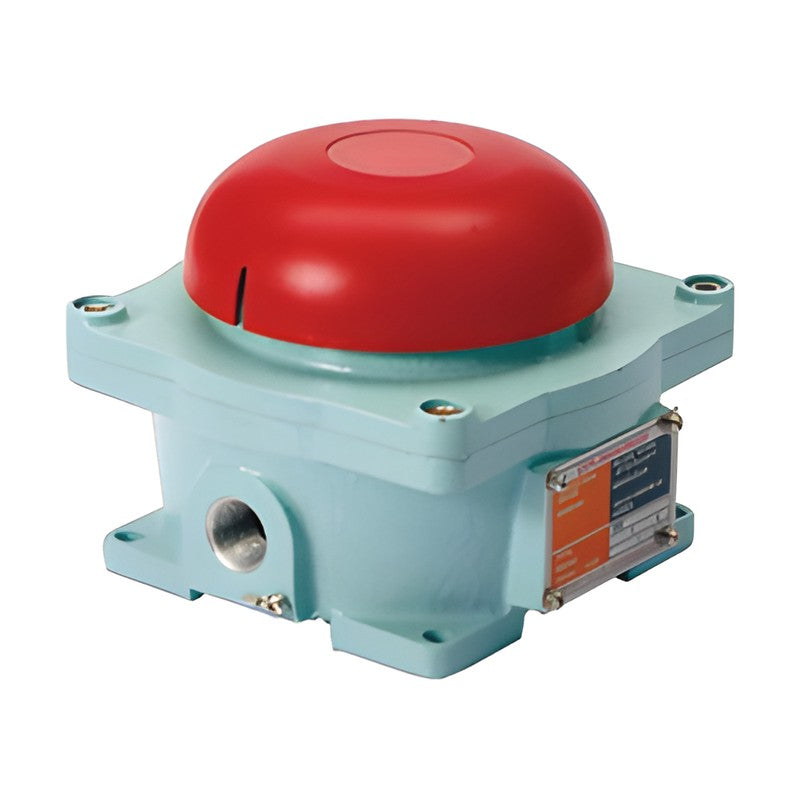

Qlight SBE130 / SBE150 Explosion-Proof Alarm Bell, 95 dB

Qlight SBE130 / SBE150 Explosion-Proof Alarm Bell, 95 dB

Flameproof solenoid alarm bell for audible signaling in hazardous areas, vessels and outdoor plants.

Key features

  • Solenoid bell structure resists heavy vibration and impact
  • Fully enclosed aluminum housing, IP56
  • Customization: Ex cable gland, 2 entries, 3/4" NPT/M20/M25 entry

Specifications

Sound level Max. 95 dB at 1 m
Explosion protection Ex d IIC T6 (SBE150)
Protection rating IP56
Ambient temperature -40 to +60 °C
Materials Housing Al, bell housing Al
Cable entry 1/2" NPT
Housing color Munsell 7.5BG 7/2
Certificates KIMM
Qlight SBE130 / SBE150 Explosion-Proof Alarm Bell, 95 dB - reference 2
SBE130 Bell diameter: 120mm | Frequency: 400Hz | Voltage: DC24V (55mA), AC110V (40mA), AC220V (20mA) | Weight: 2.27kg
SBE150 Bell diameter: 150mm | Frequency: 600Hz | Voltage: DC24V (55mA), AC110V (45mA), AC220V (25mA) | Weight: 2.52kg
Alarm BellsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SBE130 / SBE150 Explosion-Proof Alarm Bell, 95 dB

Brand Qlight·Alarm Bells

Available part numbers (2)

SBE130, SBE150

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SBE130 / SBE150 Explosion-Proof Alarm Bell, 95 dB - reference 2
0 selected
RFQ List (0)
Product codeSpec
SBE130Bell diameter: 120mm | Frequency: 400Hz | Voltage: DC24V (55mA), AC110V (40mA), AC220V (20mA) | Weight: 2.27kg
SBE150Bell diameter: 150mm | Frequency: 600Hz | Voltage: DC24V (55mA), AC110V (45mA), AC220V (25mA) | Weight: 2.52kg
