• Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination
1 1

Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination

Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination

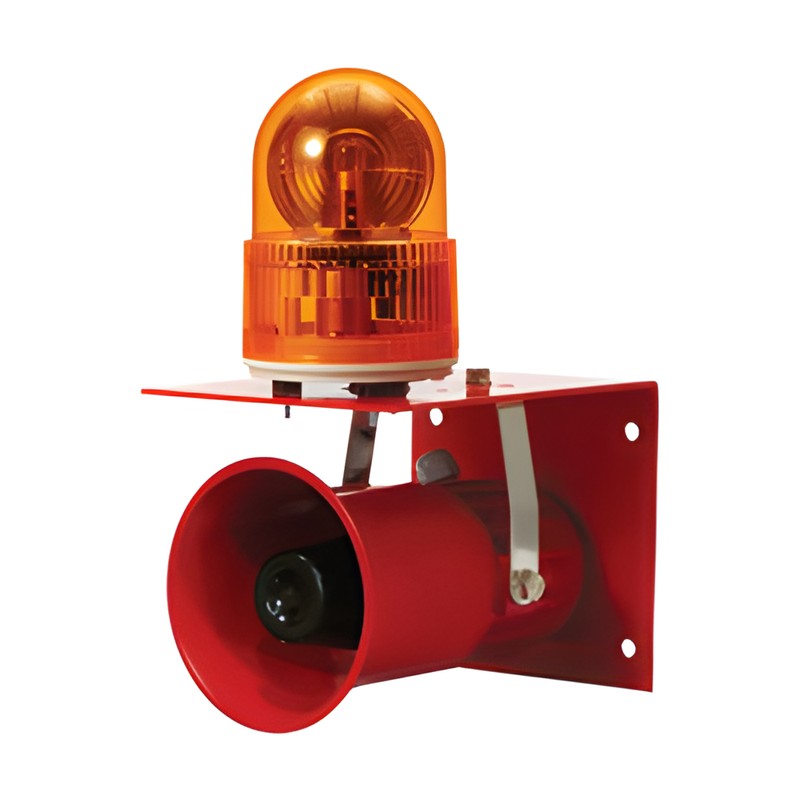

Bracket-mounted combination of a Qlight signal beacon and electronic sounder, configurable to application needs.

Key features

  • SC1: budget small combination of S100 beacon and SRN sounder
  • SC2: standard combination of S125 beacon and SEN15 sounder
  • SC3: waterproof combination of SH1P-2T/SH2P-2T beacon and SEWN30L/50L or SEHN25/50 sounder
  • Light source selectable: LED revolving, LED steady/flashing, xenon strobe or bulb revolving
  • Ambient temperature, volume and IP rating depend on the chosen combination

Specifications

Voltage DC12V, DC24V, AC110V, AC220V
Colors R, A, G, B
Ambient temperature -20 to +50 °C
Mounting Wall mount
Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination - reference 2Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination - reference 3
SC1 Standard combination: S100R + SRN | Sound: 15 signal sounds max. 108 dB, voice 95-102 dB | IP44 | 150W x 287H x 200D mm
SC2 Standard combination: S125U + SEN15 | Sound: 15 signal sounds max. 105 dB, voice 94-101 dB | IP44 | 174W x 312H x 232D mm
SC3 Standard combination: SH1P-2T + SEWN30L | Sound: max. 114 dB, voice 108-113 dB | IP56 | 244W x 381H x 292D mm
Sounder BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination

Brand Qlight·Sounder Beacons

Available part numbers (3)

SC1, SC2, SC3

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination - reference 2Qlight SC Series Configurable Signal Beacon and Electronic Sounder Combination - reference 3
0 selected
RFQ List (0)
Product codeSpec
SC1Standard combination: S100R + SRN | Sound: 15 signal sounds max. 108 dB, voice 95-102 dB | IP44 | 150W x 287H x 200D mm
SC2Standard combination: S125U + SEN15 | Sound: 15 signal sounds max. 105 dB, voice 94-101 dB | IP44 | 174W x 312H x 232D mm
SC3Standard combination: SH1P-2T + SEWN30L | Sound: max. 114 dB, voice 108-113 dB | IP56 | 244W x 381H x 292D mm

Need a different model, or a part not listed here? Send us your parts list →
