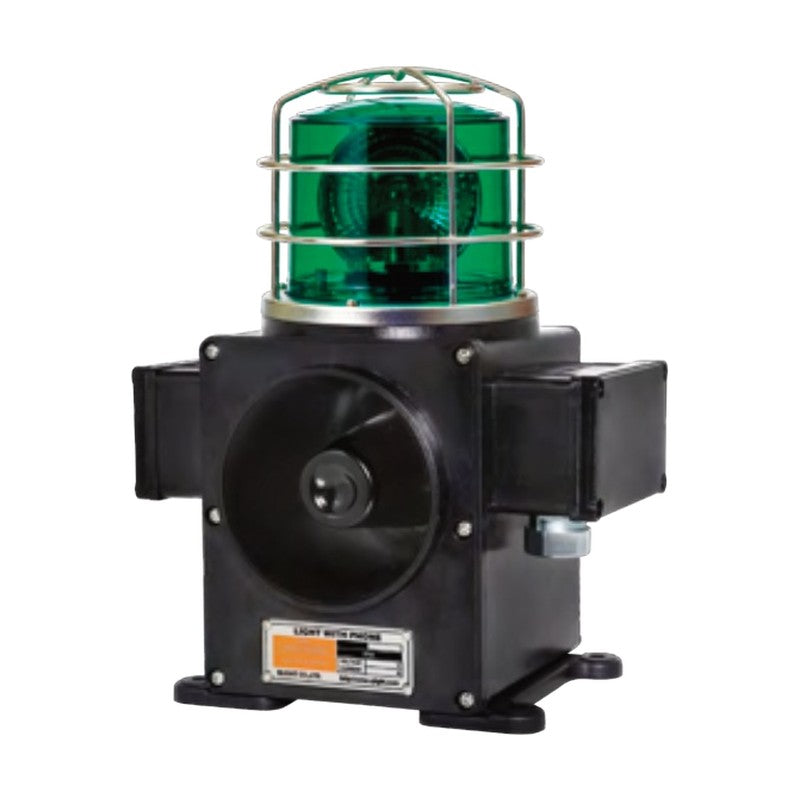

Qlight SCDF / SCDW Bulb Revolving Beacon with Electronic Sounder, 113 dB
Qlight SCDF / SCDW Bulb Revolving Beacon with Electronic Sounder, 113 dB
Lightweight bulb revolving beacon and electronic sounder combination for vessels and heavy industry.
Key features
- Multi-layer reflector, 15W G23 15S bulb, 120-140 RPM
- Lightweight PC+GF housing with standard protection cage
- Recessed horn protects against external impact
- Side terminal box for easy wiring
- Detachable bracket: self mount (SCDF) or wall mount (SCDW)
- 25 selectable sounds; customization: external sound selection (-LC), 3/4" PF entry, cable gland
Specifications
| Protection rating | IP66 |
|---|---|
| Cable entry | 1/2" PF |
| Materials | Lens PC, housing PC+GF, cage STS316L |
| Sound level | Max. 113 dB at 1 m |
| Sounds | WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices |
| Colors | R, A, G, B |
| Transistor input | NPN |
| Light source | Bulb revolving |
| Ambient temperature | -20 to +50 °C |
| Voltage | DC12V (3A), DC24V (2A), AC110V (450mA), AC220V (230mA) |
| Certificates | CE (DC24V); CCS per spec list |
| SCDF | Mounting: self mount | Weight: 2.68kg | |
| SCDW | Mounting: wall mount | Weight: 3.60kg |
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight SCDF / SCDW Bulb Revolving Beacon with Electronic Sounder, 113 dB
Available part numbers (2)
SCDF, SCDW
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Sounder Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SCDF | Mounting: self mount | Weight: 2.68kg | ||
| SCDW | Mounting: wall mount | Weight: 3.60kg |
Need a different model, or a part not listed here? Send us your parts list →
