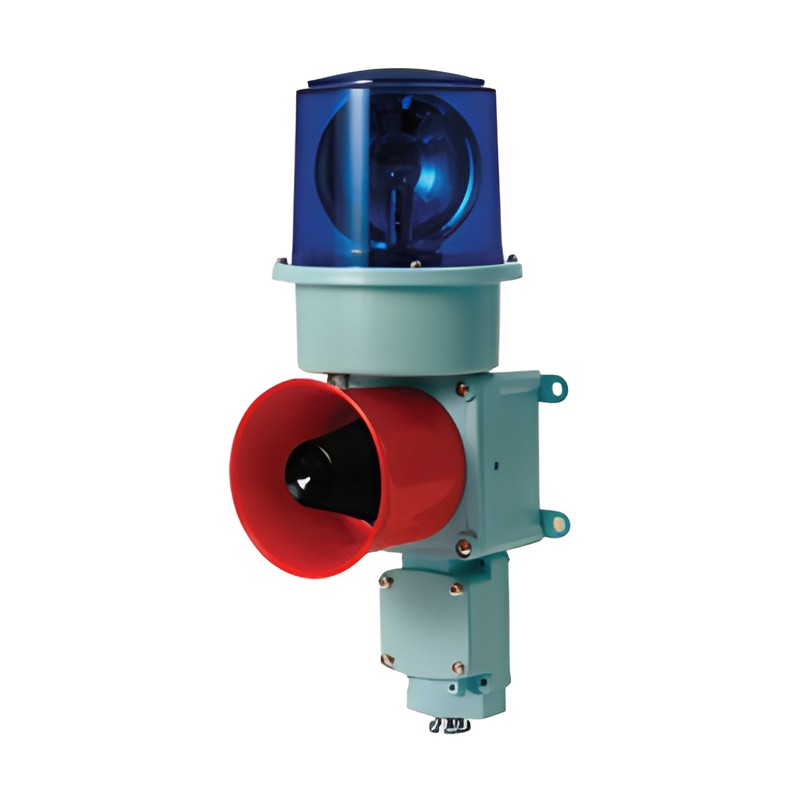

Qlight SD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount

Qlight SD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount

Wall-mount Ø150 mm bulb revolving signal beacon with 114 dB electronic sounder for vessels and heavy industry.

Key features

  • Multi-faceted reflector, 120-140 RPM
  • Wall-mount signal beacon and electronic sounder combination for vessels and heavy industry
  • Aluminum housing with attached terminal box; IP66 hermetic structure
  • 25 selectable sounds (warning, special warning, melodies, alarms, custom voices) via internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection (-LC), brass housing

Specifications

Light source Bulb revolving (15W G23 15S)
Beacon diameter Ø150 mm
Sound level Max. 114 dB at 1 m
Sound output WS/WP/WA max. 114 dB, WM max. 110 dB, WV 108-113 dB
Voltage DC12V (3A), DC24V (2A), AC110V (450mA), AC220V (230mA)
Ambient temperature -20 to +50 °C
Protection rating IP66
Cable entry 1/2" PF
Materials Lens PC, housing Al, cage STS316L
Colors R, A, G, B
Mounting Wall mount
Certificates CE (DC24V)
SD Type: standard | Weight: DC 3.43kg, AC 4.21kg
SDP Type: protection cage | Weight: DC 3.72kg, AC 4.50kg
