• Qlight SDL LED Steady/Flashing Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount
1 1

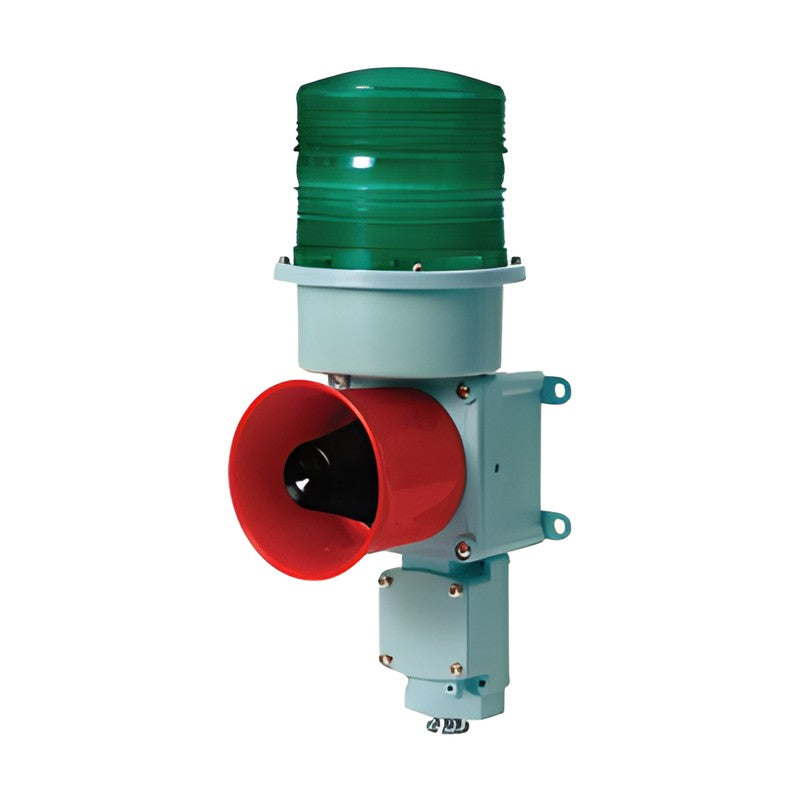

Qlight SDL LED Steady/Flashing Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount

Qlight SDL LED Steady/Flashing Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount

Wall-mount Ø150 mm led steady/flashing signal beacon with 114 dB electronic sounder for vessels and heavy industry.

Key features

  • Built-in steady/flashing switch, 60-80 flashes/min
  • Wall-mount signal beacon and electronic sounder combination for vessels and heavy industry
  • Aluminum housing with attached terminal box; IP66 hermetic structure
  • 25 selectable sounds (warning, special warning, melodies, alarms, custom voices) via internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection (-LC), brass housing

Specifications

Light source LED steady/flashing
Beacon diameter Ø150 mm
Sound level Max. 114 dB at 1 m
Sound output WS/WP/WA max. 114 dB, WM max. 110 dB, WV 108-113 dB
Voltage DC12V (2A), DC24V (1.5A), AC110V (370mA), AC220V (200mA)
Ambient temperature -30 to +50 °C
Protection rating IP66
Cable entry 1/2" PF
Materials Lens PC, housing Al, cage STS316L
Colors R, A, G, B
Mounting Wall mount
Certificates CE (series reference)
SDL Type: standard | Weight: DC 3.22kg, AC 3.64kg
SDLP Type: protection cage | Weight: DC 3.51kg, AC 3.93kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SDL LED Steady/Flashing Beacon with Electronic Sounder, Ø150 mm, 114 dB, Wall Mount

Brand Qlight·Sounder Beacons

Available part numbers (2)

SDL, SDLP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDLType: standard | Weight: DC 3.22kg, AC 3.64kg
SDLPType: protection cage | Weight: DC 3.51kg, AC 3.93kg
