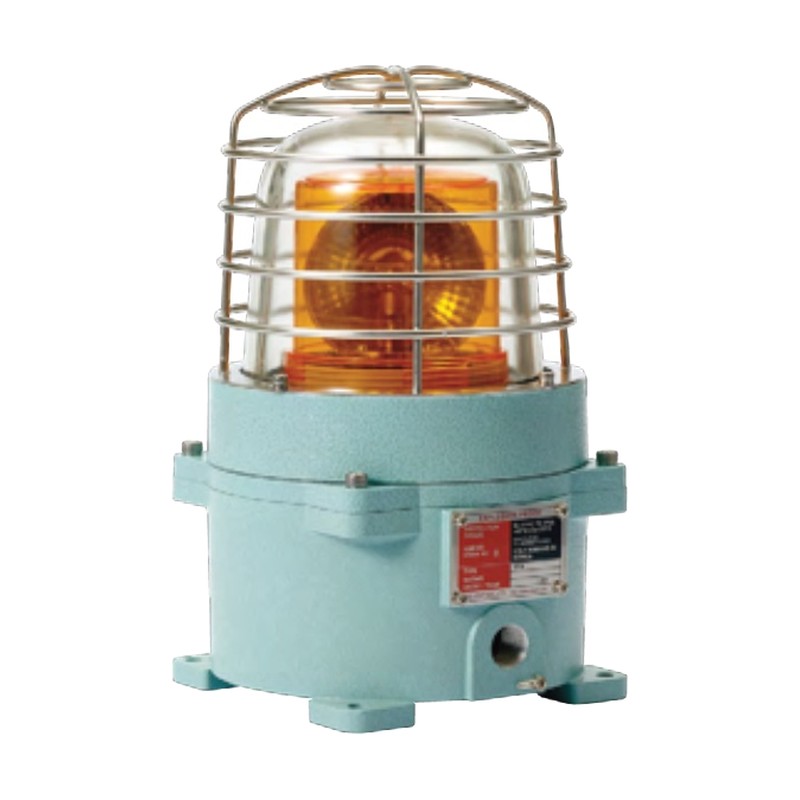

Qlight SEA Explosion-Proof Bulb Revolving Beacon, Ø150 mm

Qlight SEA Explosion-Proof Bulb Revolving Beacon, Ø150 mm

Large Ø150 mm flameproof bulb revolving beacon for Zone 1/2 hazardous areas.

Key features

  • Multi-faceted reflector, 15W G23 15S bulb, 120-140 RPM
  • Large Ø150 mm flameproof beacon for long-distance visibility
  • Integrated housing and terminal box, IP66
  • Customization: 2 cable entries, 3/4" NPT, M20x1.5, M25x1.5 entry

Specifications

Explosion protection Ex db IIC T6 Gb (IECEx/ATEX/NEPSI/CCS); KCs Ex d IIC T6
Protection rating IP66
Ambient temperature -40 to +60 °C (TS -20 °C)
Materials Lens tempered glass, housing Al, cage STS316L
Cable entry 1/2" NPT
Housing color Munsell 7.5BG 7/2
Colors R, A, G, B
Usage area Zone 1, Zone 2
Certificates IECEx, ATEX, NEPSI, CCC, KCs, CCS, TS (series)
Light source Bulb revolving
SEA Voltage: DC24V (690mA), AC120V (150mA), AC230V (90mA) | Weight: 5.36kg DC, 5.75kg AC
Explosion-Proof Signal LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SEA Explosion-Proof Bulb Revolving Beacon, Ø150 mm

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (1)

SEA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SEAVoltage: DC24V (690mA), AC120V (150mA), AC230V (90mA) | Weight: 5.36kg DC, 5.75kg AC
