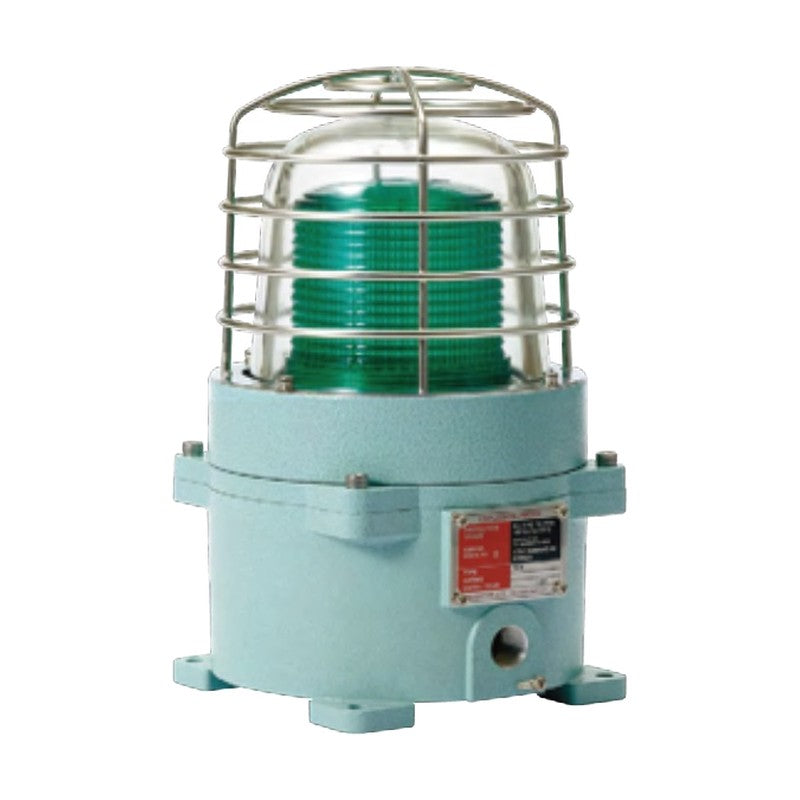

Qlight SEAS-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø150 mm
Qlight SEAS-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø150 mm
Telephone-initiated Ø150 mm flameproof xenon strobe beacon that lights on the phone ring signal.
Key features
- Telephone initiated: built-in alarm activates on 25 Hz telephone ring signal
- Connects to a 2-wire PSTN telephone line
- Highly noticeable telephone alarm for noisy environments
- Xenon strobe light, xenon lamp EUB0641-1A(G), 60-80 flashes/min
- Aluminum housing, IP66, integrated terminal box; customization: Ex cable gland, 2 cable entries
Specifications
| Explosion protection | Ex db IIC T6 Gb (IECEx/ATEX) |
|---|---|
| Protection rating | IP66 |
| Ambient temperature | -40 to +60 °C |
| Cable entry | 1/2" NPT |
| Certificates | IECEx, ATEX |
| Colors | R, A, G, B |
| Usage area | Zone 1, Zone 2 |
| Telephone line | Idle 45-55VDC; ring AC25V-120V, 15-55 Hz |
| Materials | Lens tempered glass, housing Al, cage STS316L |
| Housing color | Munsell 7.5BG 7/2 |
| Light source | Xenon strobe |
| SEAS-TI | Voltage: DC24V (490mA), AC120V (115mA), AC230V (110mA) | Weight: 5.35-5.39kg |
Explosion-Proof Signal LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight SEAS-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø150 mm
Available part numbers (1)
SEAS-TI
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Explosion-Proof Signal Lights
Photo on request
Share
Product codes & specifications
0 selected
| Product code | Spec | ||
|---|---|---|---|
| SEAS-TI | Voltage: DC24V (490mA), AC120V (115mA), AC230V (110mA) | Weight: 5.35-5.39kg |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Electrical & Lighting →-

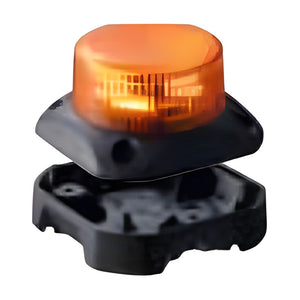

PATLITEPATLITE GL-001 Magnet Bracket for GL7/GF71 model -

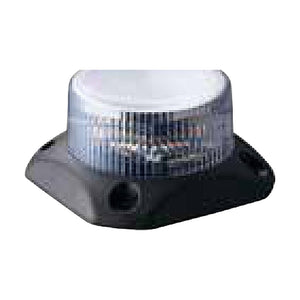

PATLITEPATLITE GL7 / GL7T / GF7 Rugged Outdoor Warning Beacons6 models -

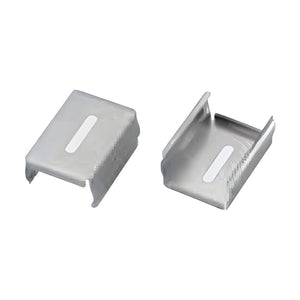

PATLITEPATLITE SZW LED Light Mounting Brackets2 models -
PATLITEPhoto on requestPATLITEPATLITE NHP-TF Dimmer Film for PHE-3FB3N1 model
-

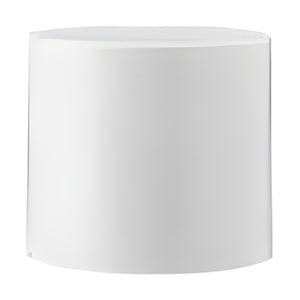

PATLITEPATLITE LB6-BW / LR6-BW Buzzer Units2 models -

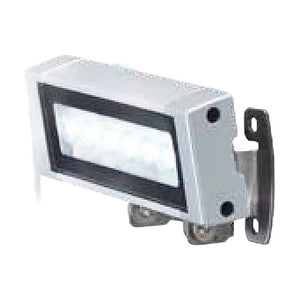

PATLITEPATLITE CLK1 LED Spot Light for Machine Tools1 model
