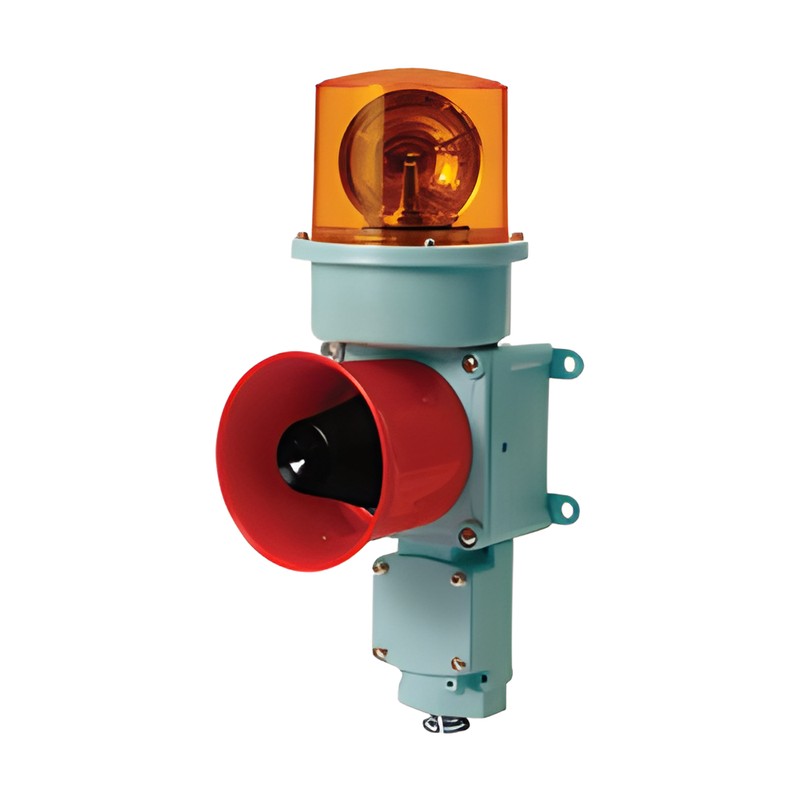

Qlight SEDLR LED Revolving Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Qlight SEDLR LED Revolving Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Wall-mount Ø125 mm led revolving signal beacon with 114 dB electronic sounder for vessels and heavy industry.

Key features

  • LED revolving light with multi-side reflector, 120-140 RPM
  • Wall-mount signal beacon and electronic sounder combination for vessels and heavy industry
  • Aluminum housing with attached terminal box; IP66 hermetic structure
  • 25 selectable sounds (warning, special warning, melodies, alarms, custom voices) via internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection (-LC)

Specifications

Light source LED revolving
Beacon diameter Ø125 mm
Sound level Max. 114 dB at 1 m
Sound output WS/WP/WA max. 114 dB, WM max. 110 dB, WV 108-113 dB
Voltage DC12V (1.7A), DC24V (1.3A), AC110V (330mA), AC220V (180mA)
Ambient temperature -20 to +50 °C
Protection rating IP66
Cable entry 1/2" PF
Materials Lens PC, housing Al, cage STS316L
Colors R, A, G, B
Mounting Wall mount
Certificates CCS, CE (series reference)
SEDLR Type: standard | Weight: DC 3.09kg, AC 3.86kg
SEDLRP Type: protection cage | Weight: DC 3.34kg, AC 4.11kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SEDLR LED Revolving Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Brand Qlight·Sounder Beacons

Available part numbers (2)

SEDLR, SEDLRP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SEDLRType: standard | Weight: DC 3.09kg, AC 3.86kg
SEDLRPType: protection cage | Weight: DC 3.34kg, AC 4.11kg
