• Qlight SEDS Xenon Strobe Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount
1 1

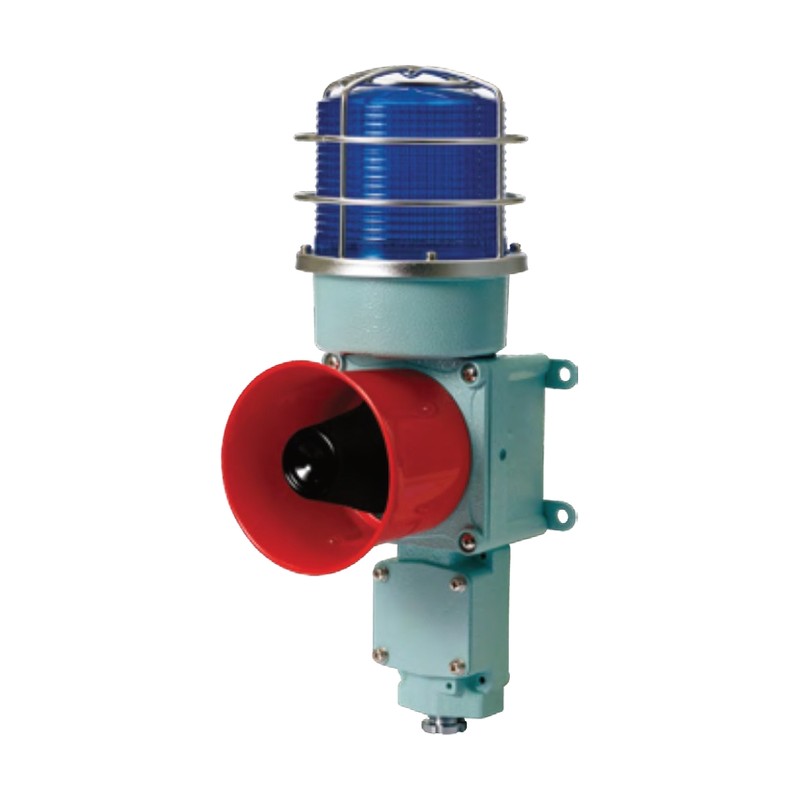

Qlight SEDS Xenon Strobe Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Qlight SEDS Xenon Strobe Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Wall-mount Ø125 mm xenon strobe signal beacon with 114 dB electronic sounder for vessels and heavy industry.

Key features

  • Connector-type xenon lamp EUB0641-1A(G), 60-80 flashes/min
  • Wall-mount signal beacon and electronic sounder combination for vessels and heavy industry
  • Aluminum housing with attached terminal box; IP66 hermetic structure
  • 25 selectable sounds (warning, special warning, melodies, alarms, custom voices) via internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection (-LC)

Specifications

Light source Xenon strobe
Beacon diameter Ø125 mm
Sound level Max. 114 dB at 1 m
Sound output WS/WP/WA max. 114 dB, WM max. 110 dB, WV 108-113 dB
Voltage DC12V (2.5A), DC24V (1.4A), AC110V (360mA), AC220V (220mA)
Ambient temperature -30 to +50 °C
Protection rating IP66
Cable entry 1/2" PF
Materials Lens PC, housing Al, cage STS316L
Colors R, A, G, B
Mounting Wall mount
Certificates CCS, CE (series reference)
SEDS Type: standard | Weight: DC 3.01kg, AC 3.40kg
SEDSP Type: protection cage | Weight: DC 3.26kg, AC 3.65kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SEDS Xenon Strobe Beacon with Electronic Sounder, Ø125 mm, 114 dB, Wall Mount

Brand Qlight·Sounder Beacons

Available part numbers (2)

SEDS, SEDSP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SEDSType: standard | Weight: DC 3.01kg, AC 3.40kg
SEDSPType: protection cage | Weight: DC 3.26kg, AC 3.65kg

Need a different model, or a part not listed here? Send us your parts list →
