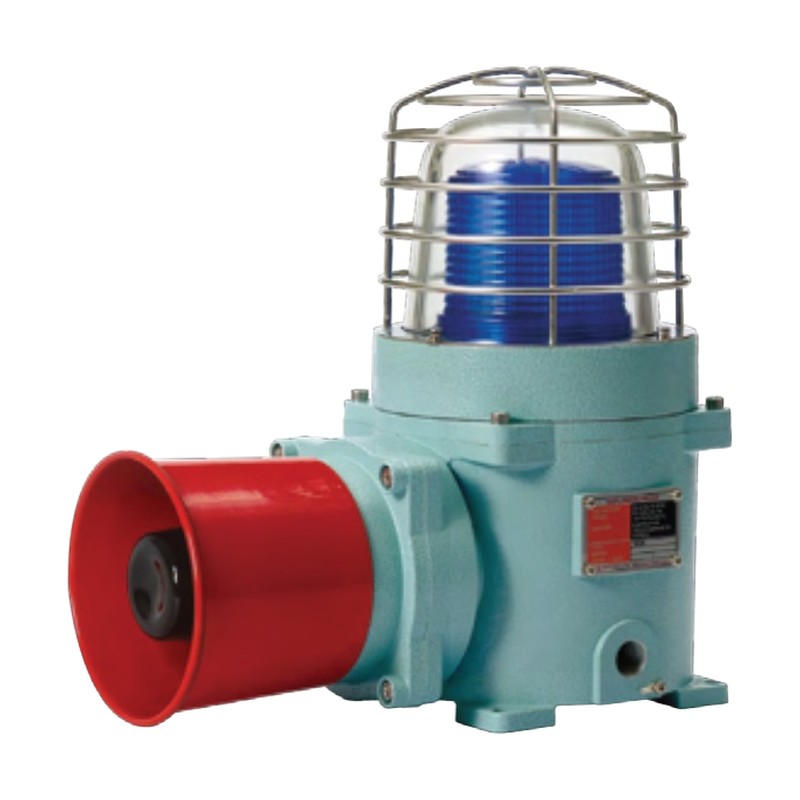

Qlight SESAS Explosion-Proof Xenon Strobe Beacon with Electronic Sounder, 118 dB

Qlight SESAS Explosion-Proof Xenon Strobe Beacon with Electronic Sounder, 118 dB

Large flameproof xenon strobe beacon with 118 dB electronic sounder for Zone 1/2 hazardous areas.

Key features

  • Xenon lamp EUB0641-1A(G), 60-80 flashes/min
  • Large flameproof signal beacon and 118 dB electronic sounder combination
  • 25 selectable sounds via internal switches; volume adjustable
  • Integrated housing and terminal box, IP66
  • Customization: external sound selection (-LC), 2 cable entries, 3/4" NPT/M20/M25 entry, KCs IIC (SESAKC)

Specifications

Sound level WS/WP/WM max. 118 dB, WA max. 116 dB, WV 110-115 dB
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Explosion protection Ex db IIC T6 Gb (IECEx/ATEX/NEPSI/CCS); KCs Ex d IIB+H2 T6
Protection rating IP66
Ambient temperature -40 to +60 °C (KCs +55 °C; TS -20 °C)
Materials Lens tempered glass, housing Al, cage STS316L
Cable entry 1/2" NPT
Colors R, A, G, B
Usage area Zone 1, Zone 2
Transistor input NPN
Certificates IECEx, ATEX, NEPSI, CCC, KCs, CCS, CCC(F), TS (series)
Light source Xenon strobe
SESAS Voltage: DC24V (1.27A), AC120V (300mA), AC230V (180mA) | Weight: 8.45kg DC, 8.86kg AC
Sounder BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SESAS Explosion-Proof Xenon Strobe Beacon with Electronic Sounder, 118 dB

Brand Qlight·Sounder Beacons

Available part numbers (1)

SESAS

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SESASVoltage: DC24V (1.27A), AC120V (300mA), AC230V (180mA) | Weight: 8.45kg DC, 8.86kg AC
