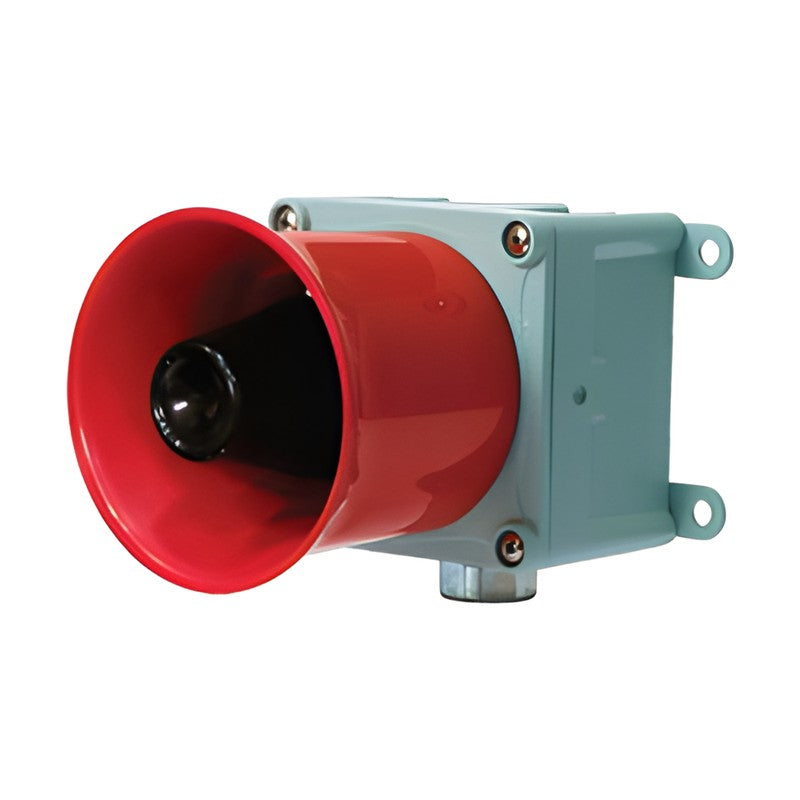

Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB

Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB

Heavy-duty aluminum electronic sounder with 114 dB output for vessels and heavy industrial applications.

Key features

  • Sealed aluminum electronic horn for vessels, steel plants and outdoor installations
  • Wall mount (E), self stand (L) and wall mount with terminal box (T) versions
  • 25 selectable sounds: warning, special warning, melodies, alarms, custom voices
  • Volume adjustable with internal dial
  • Customization: external sound selection (-LC), 2-entry terminal box (-2T), brass housing, 3/4" PF entry

Specifications

Sound level WS/WP/WA max. 114 dB, WM max. 110 dB, WV 108-113 dB
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Voltage DC12V (2.2A), DC24V (1A), AC110V (260mA), AC220V (130mA)
Protection rating IP66
Ambient temperature -30 to +50 °C
Materials Housing Al, horn housing PC
Horn diameter Ø117 mm
Cable entry 1/2" PF
Certificates CE (AC220V, DC24V)
Transistor input NPN
Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB - reference 2Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB - reference 3
SEWN30E Mounting: wall mount | Weight: DC 1.76kg, AC 2.11kg | Certificates: CCS
SEWN30L Mounting: self stand | Weight: DC 1.74kg, AC 2.13kg
SEWN30T Mounting: wall mount with terminal box | Weight: DC 2.23kg, AC 2.58kg
Signal HornsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB

Brand Qlight·Signal Horns

Available part numbers (3)

SEWN30E, SEWN30L, SEWN30T

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB - reference 2Qlight SEWN30 Electronic Sounder for Vessels and Heavy Industry, 114 dB - reference 3
0 selected
RFQ List (0)
Product codeSpec
SEWN30EMounting: wall mount | Weight: DC 1.76kg, AC 2.11kg | Certificates: CCS
SEWN30LMounting: self stand | Weight: DC 1.74kg, AC 2.13kg
SEWN30TMounting: wall mount with terminal box | Weight: DC 2.23kg, AC 2.58kg
