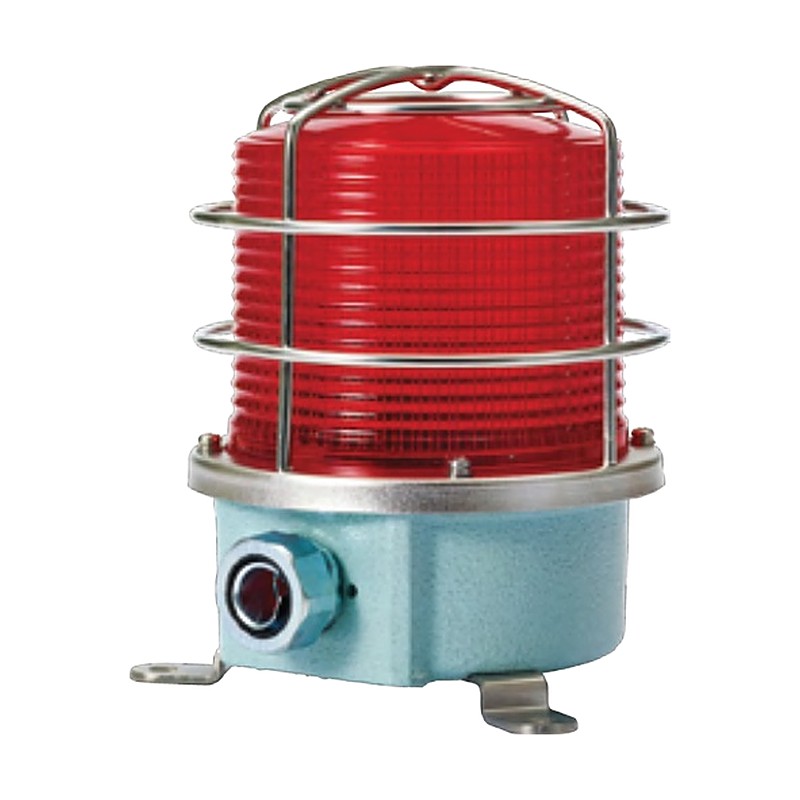

Qlight SH1L LED Steady/Flashing Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Qlight SH1L LED Steady/Flashing Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Ø125 mm heavy-duty LED steady/flashing beacon with aluminum or stainless housing.

Key features

  • Multi-layer LED reflector for uniform light diffusion
  • Built-in steady/flashing selection switch, 60-80 flashes/min
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source LED steady/flashing
Ambient temperature -30 to +50 °C
Lens diameter Ø125 mm
Voltage DC12V-24V (max. 300mA), AC110V (70mA), AC220V (35mA)
Colors R, A, G, B
SH1L Type: standard | Housing: Al | Weight: 1.49kg | Certificates: CCS
SH1L-SUS Type: standard | Housing: STS316L | Weight: 1.93kg
SH1LP Type: protection cage | Housing: Al | Weight: 1.74kg | Certificates: CCS
SH1LP-SUS Type: protection cage | Housing: STS316L | Weight: 2.18kg
SH1TL Type: terminal box, 15C nipple | Weight: 1.95kg
SH1TLP Type: protection cage and terminal box | Weight: 2.20kg
Signal BeaconsQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH1L LED Steady/Flashing Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Brand Qlight·Signal Beacons

Available part numbers (6)

SH1L, SH1L-SUS, SH1LP, SH1LP-SUS, SH1TL, SH1TLP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH1LType: standard | Housing: Al | Weight: 1.49kg | Certificates: CCS
SH1L-SUSType: standard | Housing: STS316L | Weight: 1.93kg
SH1LPType: protection cage | Housing: Al | Weight: 1.74kg | Certificates: CCS
SH1LP-SUSType: protection cage | Housing: STS316L | Weight: 2.18kg
SH1TLType: terminal box, 15C nipple | Weight: 1.95kg
SH1TLPType: protection cage and terminal box | Weight: 2.20kg
