• Qlight SH1LR LED Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry
1 1

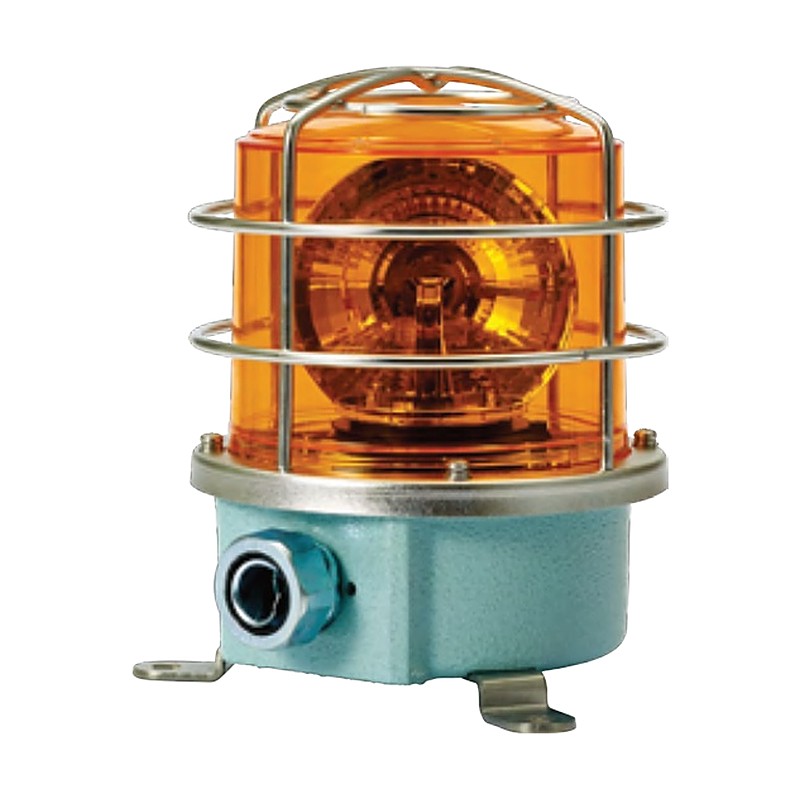

Qlight SH1LR LED Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Qlight SH1LR LED Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Ø125 mm heavy-duty LED revolving beacon with aluminum or stainless housing for marine and heavy industry use.

Key features

  • Concentrated LED light with multi-side reflector, 120-140 RPM
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source LED revolving
Ambient temperature -20 to +50 °C
Lens diameter Ø125 mm
Voltage DC12V (420mA), DC24V (260mA), AC110V (80mA), AC220V (50mA)
Colors R, A, G, B
SH1LR Type: standard | Housing: Al | Weight: 1.64kg | Certificates: CCS
SH1LR-SUS Type: standard | Housing: STS316L | Weight: 2.08kg
SH1LRP Type: protection cage | Housing: Al | Weight: 1.89kg | Certificates: CCS
SH1LRP-SUS Type: protection cage | Housing: STS316L | Weight: 2.33kg
SH1TLR Type: terminal box, 15C nipple | Weight: 2.10kg
SH1TLRP Type: protection cage and terminal box | Weight: 2.35kg
Rotating Warning LightsQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH1LR LED Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Brand Qlight·Rotating Warning Lights

Available part numbers (6)

SH1LR, SH1LR-SUS, SH1LRP, SH1LRP-SUS, SH1TLR, SH1TLRP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH1LRType: standard | Housing: Al | Weight: 1.64kg | Certificates: CCS
SH1LR-SUSType: standard | Housing: STS316L | Weight: 2.08kg
SH1LRPType: protection cage | Housing: Al | Weight: 1.89kg | Certificates: CCS
SH1LRP-SUSType: protection cage | Housing: STS316L | Weight: 2.33kg
SH1TLRType: terminal box, 15C nipple | Weight: 2.10kg
SH1TLRPType: protection cage and terminal box | Weight: 2.35kg
