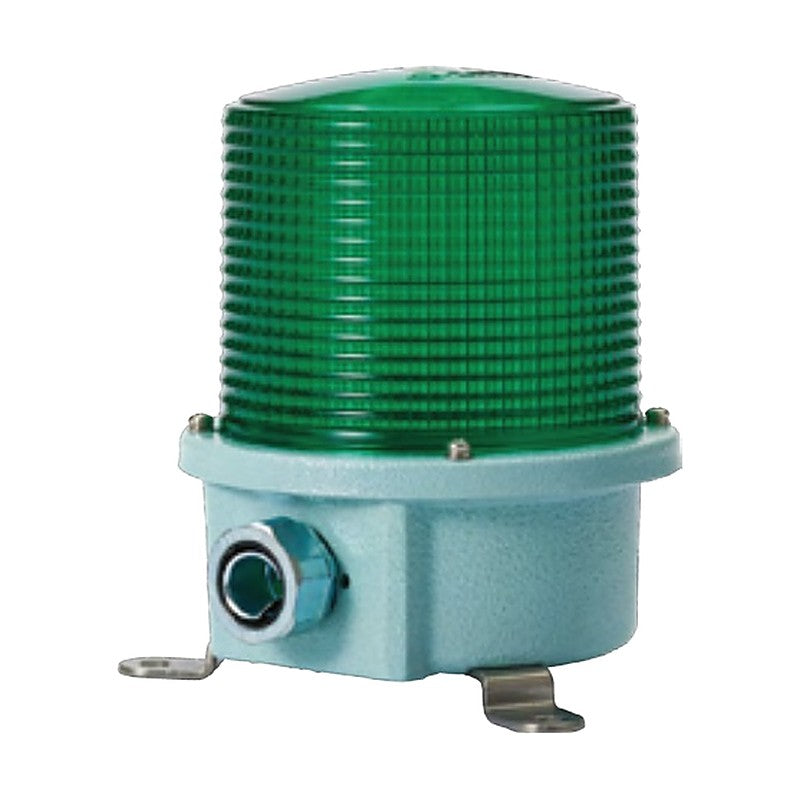

• Qlight SH1S Xenon Strobe Signal Beacon, Ø125 mm, for Vessels and Heavy Industry
1 1

Qlight SH1S Xenon Strobe Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Qlight SH1S Xenon Strobe Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Ø125 mm heavy-duty xenon strobe beacon with aluminum or stainless housing.

Key features

  • Connector-type xenon lamp (EUB0641-1A(G), U type) for easy replacement
  • Flashing rate 60-80 flashes/min
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source Xenon strobe
Ambient temperature -30 to +50 °C
Lens diameter Ø125 mm
Voltage DC12V-24V (max. 1.3A), AC110V (160mA), AC220V (140mA)
Xenon lamp EUB0641-1A(G), 200-550V, U type
Colors R, A, G, B
Certificates CE (DC12V-24V)
SH1S Type: standard | Housing: Al | Weight: 1.11kg | Certificates: CCS
SH1S-SUS Type: standard | Housing: STS316L | Weight: 1.55kg
SH1SP Type: protection cage | Housing: Al | Weight: 1.36kg | Certificates: CCS
SH1SP-SUS Type: protection cage | Housing: STS316L | Weight: 1.80kg
SH1TS Type: terminal box, 15C nipple | Weight: 1.57kg
SH1TSP Type: protection cage and terminal box | Weight: 1.82kg
Signal BeaconsQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH1S Xenon Strobe Signal Beacon, Ø125 mm, for Vessels and Heavy Industry

Brand Qlight·Signal Beacons

Available part numbers (6)

SH1S, SH1S-SUS, SH1SP, SH1SP-SUS, SH1TS, SH1TSP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH1SType: standard | Housing: Al | Weight: 1.11kg | Certificates: CCS
SH1S-SUSType: standard | Housing: STS316L | Weight: 1.55kg
SH1SPType: protection cage | Housing: Al | Weight: 1.36kg | Certificates: CCS
SH1SP-SUSType: protection cage | Housing: STS316L | Weight: 1.80kg
SH1TSType: terminal box, 15C nipple | Weight: 1.57kg
SH1TSPType: protection cage and terminal box | Weight: 1.82kg
