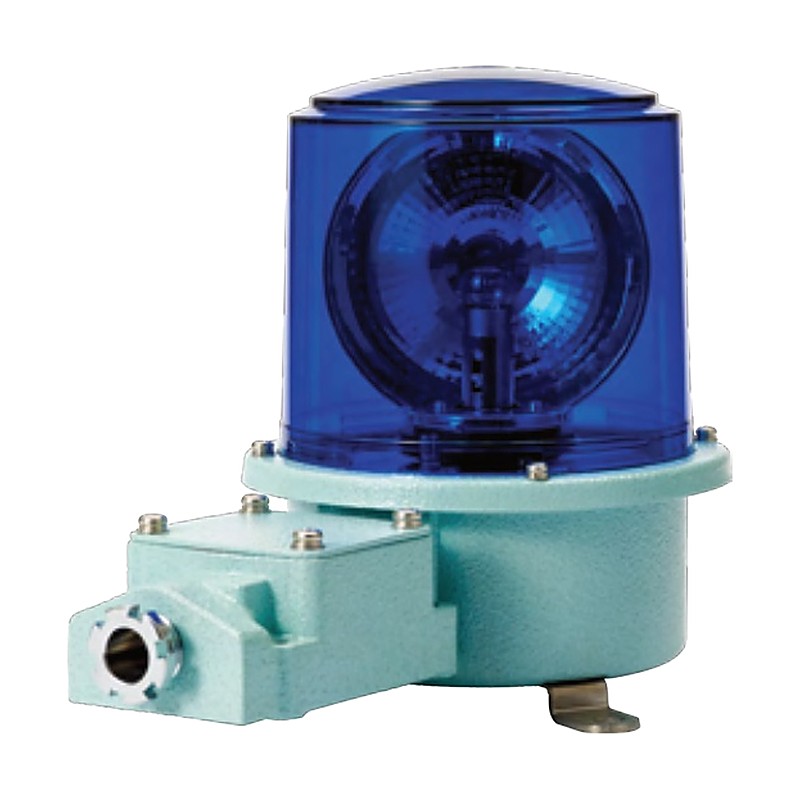

Qlight SH2 Bulb Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Qlight SH2 Bulb Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Ø150 mm heavy-duty bulb revolving beacon with aluminum housing.

Key features

  • Multi-faceted reflector for excellent light diffusion, 120-140 RPM
  • Low-noise, low-wear power transmission system
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source Bulb revolving (15W G23 15S)
Ambient temperature -20 to +50 °C
Lens diameter Ø150 mm
Voltage DC12V (1.55A), DC24V (850mA), AC110V (200mA), AC220V (100mA)
Colors R, A, G, B
Certificates CE (DC24V)
SH2 Type: standard | Weight: 1.77kg
SH2P Type: protection cage | Weight: 2.06kg
SH2T Type: terminal box, 15C nipple | Weight: 2.23kg
SH2TP Type: protection cage and terminal box | Weight: 2.52kg
Rotating Warning LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH2 Bulb Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Brand Qlight·Rotating Warning Lights

Available part numbers (4)

SH2, SH2P, SH2T, SH2TP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH2Type: standard | Weight: 1.77kg
SH2PType: protection cage | Weight: 2.06kg
SH2TType: terminal box, 15C nipple | Weight: 2.23kg
SH2TPType: protection cage and terminal box | Weight: 2.52kg
