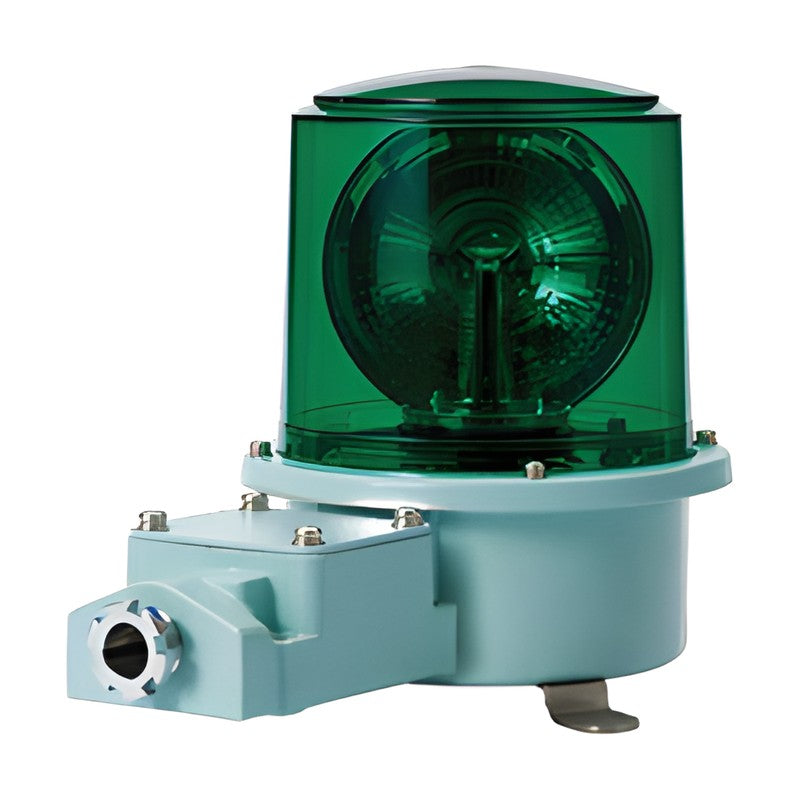

Qlight SH2LR LED Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Qlight SH2LR LED Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Ø150 mm heavy-duty LED revolving beacon with aluminum housing for marine and heavy industry use.

Key features

  • Concentrated LED light with multi-side reflector, 120-140 RPM
  • Brass housing available as customization
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source LED revolving
Ambient temperature -20 to +50 °C
Lens diameter Ø150 mm
Voltage DC12V (420mA), DC24V (260mA), AC110V (80mA), AC220V (50mA)
Colors R, A, G, B
Certificates CE
SH2LR Type: standard | Weight: 1.69kg
SH2LRP Type: protection cage | Weight: 1.98kg
SH2TLR Type: terminal box, 15C nipple | Weight: 2.15kg
SH2TLRP Type: protection cage and terminal box | Weight: 2.44kg
Rotating Warning LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH2LR LED Revolving Beacon, Ø150 mm, for Vessels and Heavy Industry

Brand Qlight·Rotating Warning Lights

Available part numbers (4)

SH2LR, SH2LRP, SH2TLR, SH2TLRP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH2LRType: standard | Weight: 1.69kg
SH2LRPType: protection cage | Weight: 1.98kg
SH2TLRType: terminal box, 15C nipple | Weight: 2.15kg
SH2TLRPType: protection cage and terminal box | Weight: 2.44kg
