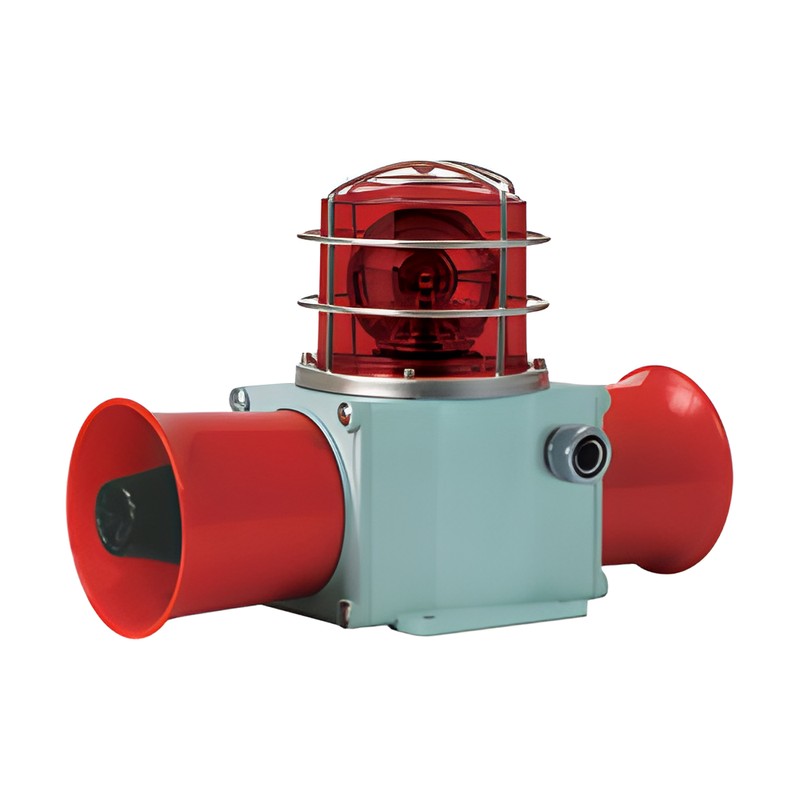

Qlight SHD2L LED Steady/Flashing Beacon with Dual Electronic Sounders, 114 dB x 2

Qlight SHD2L LED Steady/Flashing Beacon with Dual Electronic Sounders, 114 dB x 2

LED steady/flashing beacon with two 114 dB electronic horns for vessels and heavy industry.

Key features

  • Multi-layer LED reflector, built-in steady/flashing switch, 60-80 flashes/min
  • Two opposing horns
  • Signal beacon and electronic sounder combined in one rugged aluminum unit
  • 25 selectable sounds (5 warning, 5 special warning, 5 melodies, 5 alarms, 5 custom voices)
  • Volume and sound pattern set by internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection line (-LC)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al, cage STS316L
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Colors R, A, G, B
Transistor input NPN
Light source LED steady/flashing
Sound level Max. 114 dB x 2 at 1 m
Ambient temperature -30 to +50 °C
Voltage DC12V (3.5A), DC24V (2.2A), AC110V (600mA), AC220V (300mA)
SHD2L Type: standard | Weight: DC 4.07kg, AC 4.45kg
SHD2LP Type: protection cage | Weight: DC 4.32kg, AC 4.70kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SHD2L LED Steady/Flashing Beacon with Dual Electronic Sounders, 114 dB x 2

Brand Qlight·Sounder Beacons

Available part numbers (2)

SHD2L, SHD2LP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHD2LType: standard | Weight: DC 4.07kg, AC 4.45kg
SHD2LPType: protection cage | Weight: DC 4.32kg, AC 4.70kg
