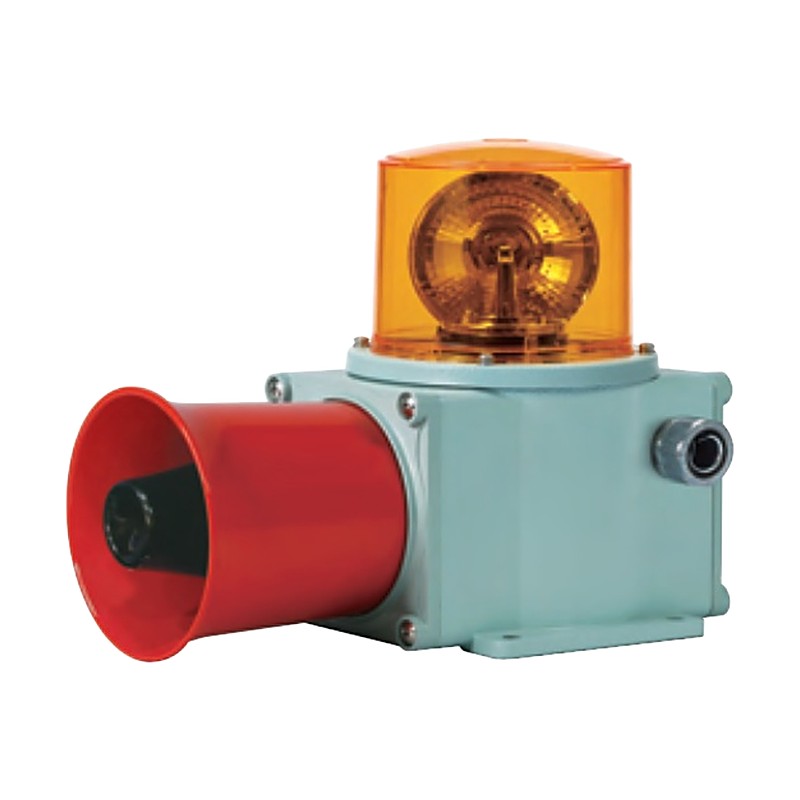

Qlight SHDL LED Steady/Flashing Beacon with Electronic Sounder, 114 dB

Qlight SHDL LED Steady/Flashing Beacon with Electronic Sounder, 114 dB

LED steady/flashing beacon and single 114 dB electronic horn combination for vessels and heavy industry.

Key features

  • Multi-layer LED reflector, built-in steady/flashing switch, 60-80 flashes/min
  • Signal beacon and electronic sounder combined in one rugged aluminum unit
  • 25 selectable sounds (5 warning, 5 special warning, 5 melodies, 5 alarms, 5 custom voices)
  • Volume and sound pattern set by internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection line (-LC)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al, cage STS316L
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Colors R, A, G, B
Transistor input NPN
Light source LED steady/flashing
Sound level Max. 114 dB at 1 m
Ambient temperature -30 to +50 °C
Voltage DC12V (2A), DC24V (1.5A), AC110V (370mA), AC220V (200mA)
Certificates CE (DC24V, AC220V)
SHDL Type: standard | Weight: DC 3.02kg, AC 3.39kg
SHDLP Type: protection cage | Weight: DC 3.27kg, AC 3.64kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SHDL LED Steady/Flashing Beacon with Electronic Sounder, 114 dB

Brand Qlight·Sounder Beacons

Available part numbers (2)

SHDL, SHDLP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHDLType: standard | Weight: DC 3.02kg, AC 3.39kg
SHDLPType: protection cage | Weight: DC 3.27kg, AC 3.64kg
