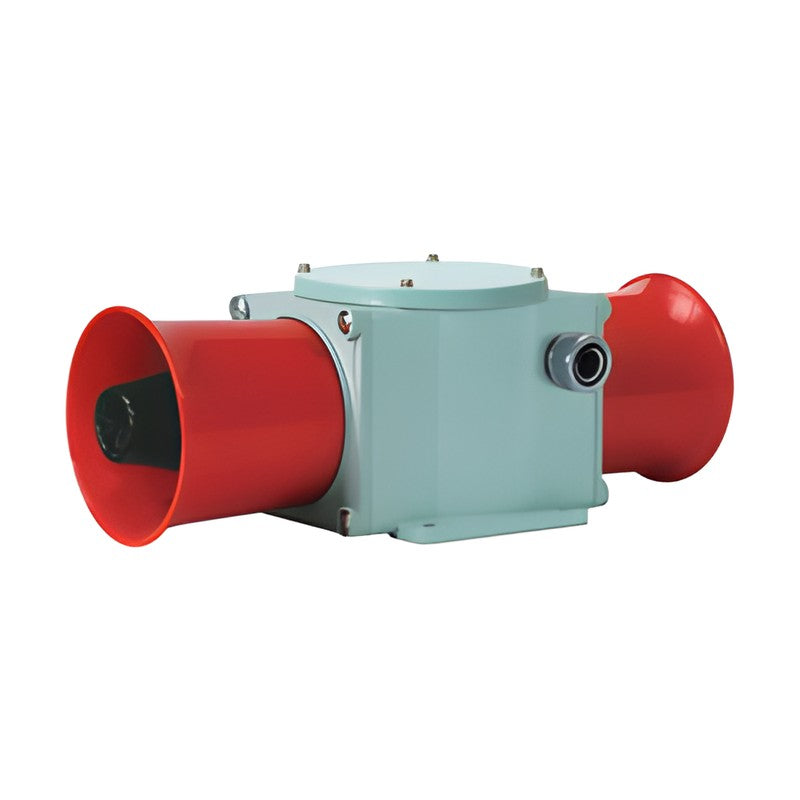

Qlight SHDN30 Dual-Facing Electronic Sounder, 114 dB x 2

Direct-mount dual-horn electronic sounder for vessels, steel plants and outdoor installations.

Key features

Two horns facing opposite directions, max. 114 dB x 2
Sealed aluminum housing for harsh environments
25 selectable sounds via internal switches; volume adjustable
Can be wired regardless of polarity
Customization: 3/4" PF entry, external sound selection line (-LC)

Specifications

Sound level	WS/WP/WA max. 114 dB x 2, WM max. 110 dB x 2, WV 108-113 dB x 2
Sounds	WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Voltage	DC12V (3A), DC24V (2.15A), AC110V (500mA), AC220V (240mA)
Weight	3.49-4.21 kg
Protection rating	IP56
Ambient temperature	-30 to +50 °C
Materials	Housing Al, horn housing PC
Cable entry	1/2" PF
Housing color	Munsell 7.5BG 7/2
Transistor input	NPN

SHDN30

Voltage: DC12V, DC24V, AC110V, AC220V | Mounting: direct mount
