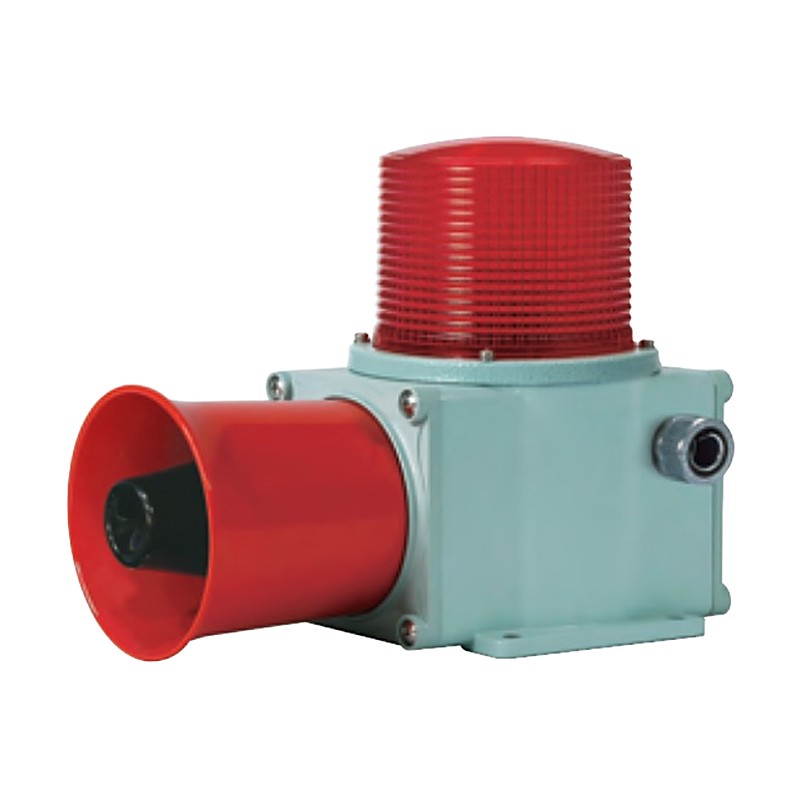

Qlight SHDS Xenon Strobe Beacon with Electronic Sounder, 114 dB

Qlight SHDS Xenon Strobe Beacon with Electronic Sounder, 114 dB

Xenon strobe beacon and single 114 dB electronic horn combination for vessels and heavy industry.

Key features

  • Xenon strobe (EUB0641-1A(G) lamp), 60-80 flashes/min
  • Signal beacon and electronic sounder combined in one rugged aluminum unit
  • 25 selectable sounds (5 warning, 5 special warning, 5 melodies, 5 alarms, 5 custom voices)
  • Volume and sound pattern set by internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection line (-LC)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al, cage STS316L
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Colors R, A, G, B
Transistor input NPN
Light source Xenon strobe
Sound level Max. 114 dB at 1 m
Ambient temperature -30 to +50 °C
Voltage DC12V (2.5A), DC24V (1.4A), AC110V (360mA), AC220V (220mA)
Certificates CE (DC24V, AC220V)
SHDS Type: standard | Weight: DC 3.05kg, AC 3.38kg
SHDSP Type: protection cage | Weight: DC 3.3kg, AC 3.6kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SHDS Xenon Strobe Beacon with Electronic Sounder, 114 dB

Brand Qlight·Sounder Beacons

Available part numbers (2)

SHDS, SHDSP
