• Qlight SM30 / SM40 Miniature Motor Siren
1 1

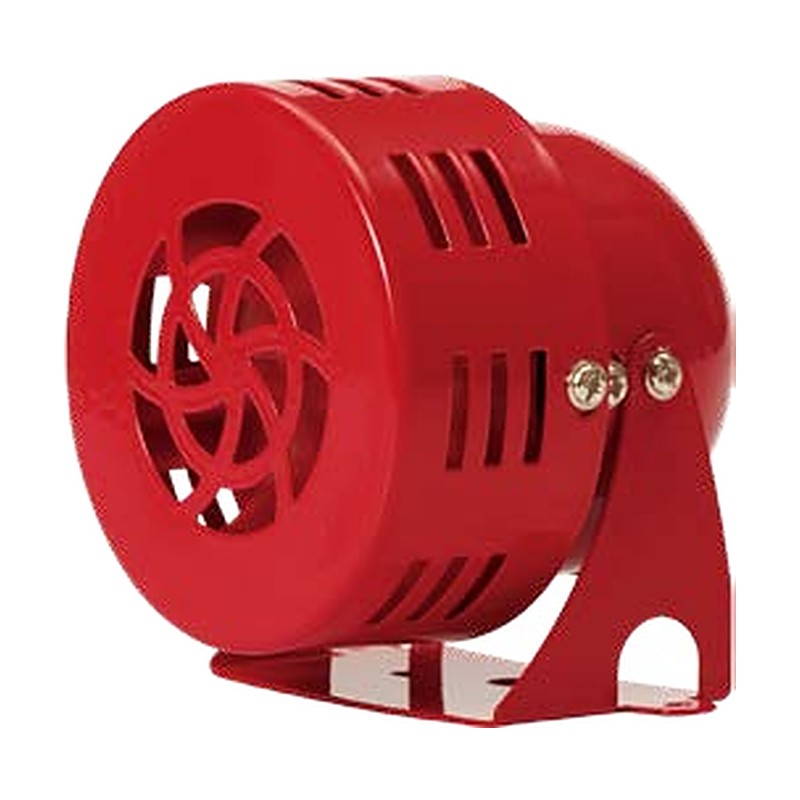

Qlight SM30 / SM40 Miniature Motor Siren

Qlight SM30 / SM40 Miniature Motor Siren

Compact motor-driven sirens producing 110 dB (SM30, Ø80 mm) or 116 dB (SM40, Ø100 mm).

Key features

  • SM30: Ø80 mm compact steel siren, 110 dB, 10,000 RPM
  • SM40: Ø100 mm compact ABS siren, 116 dB, 7,000 RPM
  • Rated continuous operation time 10 minutes

Specifications

Ambient temperature -25 to +50 °C
Insulation resistance 100 MΩ at 500 VDC
Rated time 10 min
Voltage DC12V, DC24V, AC110V, AC220V
Qlight SM30 / SM40 Miniature Motor Siren - reference 2
SM30 Volume: max. 110dB | Housing: steel, red | Current: 5A DC12V, 3A DC24V, 1.25A AC110V, 750mA AC220V | Weight: 0.22kg DC, 0.42kg AC
SM40 Volume: max. 116dB | Housing: ABS, gray | Current: 4.5A DC12V, 3A DC24V, 1A AC110V, 730mA AC220V | Weight: 0.53kg DC, 0.68kg AC
Motor SirensQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SM30 / SM40 Miniature Motor Siren

Brand Qlight·Motor Sirens

Available part numbers (2)

SM30, SM40

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SM30 / SM40 Miniature Motor Siren - reference 2
0 selected
RFQ List (0)
Product codeSpec
SM30Volume: max. 110dB | Housing: steel, red | Current: 5A DC12V, 3A DC24V, 1.25A AC110V, 750mA AC220V | Weight: 0.22kg DC, 0.42kg AC
SM40Volume: max. 116dB | Housing: ABS, gray | Current: 4.5A DC12V, 3A DC24V, 1A AC110V, 730mA AC220V | Weight: 0.53kg DC, 0.68kg AC
